Crypto chart patterns cheat sheet: all 20 patterns explained
This cheat sheet covers all 20 chart patterns that ChartScout detects, organized by category: 5 reversal patterns, 8 continuation patterns, 2 wedge patterns, 2 channel patterns, and 3 indicator signals (crossover, TD Setup, TD Countdown). Each pattern includes its signal direction, Bulkowski break-even rate where available, volume behavior, and key trading rules - all statistics are sourced from thepatternsite.com.
Chart patterns are the visual fingerprints of crowd psychology. Every triangle, flag, and double top tells the same story: buyers and sellers fighting for control, with the outcome predictable to those who know the rules. This reference guide organizes all 20 patterns that ChartScout detects into four categories, giving you the signal direction, success rate, volume behavior, and trading rules for each one.
Data source and what the numbers mean
All statistics come from Thomas Bulkowski's published research at thepatternsite.com (last updated 2020), drawn from over 40,000 perfect trades across thousands of stock charts. Figures are from bull-market upward breakouts for bullish patterns and bull-market downward breakouts for bearish patterns unless noted. Full citations are at the bottom of this guide.
- Break-even rate = percentage of patterns that moved at least 5% after the breakout (100% minus Bulkowski's break-even failure rate).
- Avg move = average rise or decline after the breakout to the ultimate high or low.
- Pullback / Throwback = percentage of patterns where price returned to retest the breakout level before continuing.
- Target hit = percentage of patterns that reached the full measured-move target.
- Rank = Bulkowski's overall performance rank; 1 is best out of 39 bullish or 36 bearish patterns.
DATA NOTICE: All stats are derived from stock market data. No equivalent crypto-wide statistical study exists. Crypto's higher volatility and 24/7 trading can shift both success rates and average moves significantly. Use these figures as a relative ranking of pattern reliability, not as exact crypto predictions.
How to use this cheat sheet
Each pattern entry below follows the same format: what it looks like, whether it's bullish or bearish, the Bulkowski success rate where available, how volume should behave, and the key rules for trading it. Bookmark this page and reference it whenever you spot a formation you need to confirm.
Three rules that apply to every pattern
- Always wait for the breakout confirmation - a close beyond the pattern boundary, not just a wick.
- Volume must confirm the breakout - above-average volume on the breakout candle, or the signal is suspect.
- Use the measured move for targets - project the pattern's height from the breakout point to set your take-profit level.
Patterns are organized from highest to lowest reliability within each category. Where ChartScout has a dedicated deep-dive article, we link to it for the full trading strategy. For patterns without a dedicated guide, the cheat sheet entry below gives you everything you need.
Why crypto chart patterns are not stock chart patterns
Every Bulkowski success rate in this cheat sheet comes from stock market data. They are the best statistics available for chart patterns, but crypto is not the NYSE. Four things change when you apply these patterns to Bitcoin, Ethereum, and altcoins.
“Classical technical analysis is applied social psychology, like poll-taking. Support, resistance, breakouts, and other patterns reflect crowd behavior.”
- Alexander Elder, The New Trading for a Living
Elder's point is why patterns translate at all. Crowd psychology does not care whether the chart is IBM or BTC. But the mechanics of each market affect how the psychology expresses itself, and crypto changes the mechanics in four ways:
- 24/7 markets, no gaps. Stock patterns form around 6.5-hour trading sessions with overnight gaps. Crypto patterns form continuously. A head and shoulders on BTC never skips a weekend, so formations complete on wall-clock time, not session time.
- Higher baseline volatility. Bulkowski's average 22% decline on a head and shoulders becomes a 35-50% decline on a mid-cap altcoin. The pattern still works, but position sizing and stop placement need to account for 2-3x the range.
- Thinner order books on altcoins. Patterns on BTC, ETH, and SOL are reliable. Patterns on low-volume altcoins are easily manipulated. A single large order can fake a breakout, trigger stops, and reverse. Stick to pairs with meaningful depth.
- Pattern completion is faster. A symmetrical triangle on a stock daily chart takes weeks. The same triangle on a crypto 15-minute or 1-hour chart completes in hours. The rules do not change, but the clock does - which is why the 5m, 15m, 1h, and 4h timeframes are the sweet spot for crypto pattern trading.
Reversal patterns
Reversal patterns signal that the current trend is exhausted and price is about to change direction. They require an existing trend to reverse - a head and shoulders at a market top needs a prior uptrend, a double bottom at a market low needs a prior downtrend. These five patterns are the most powerful trend-change signals in technical analysis.

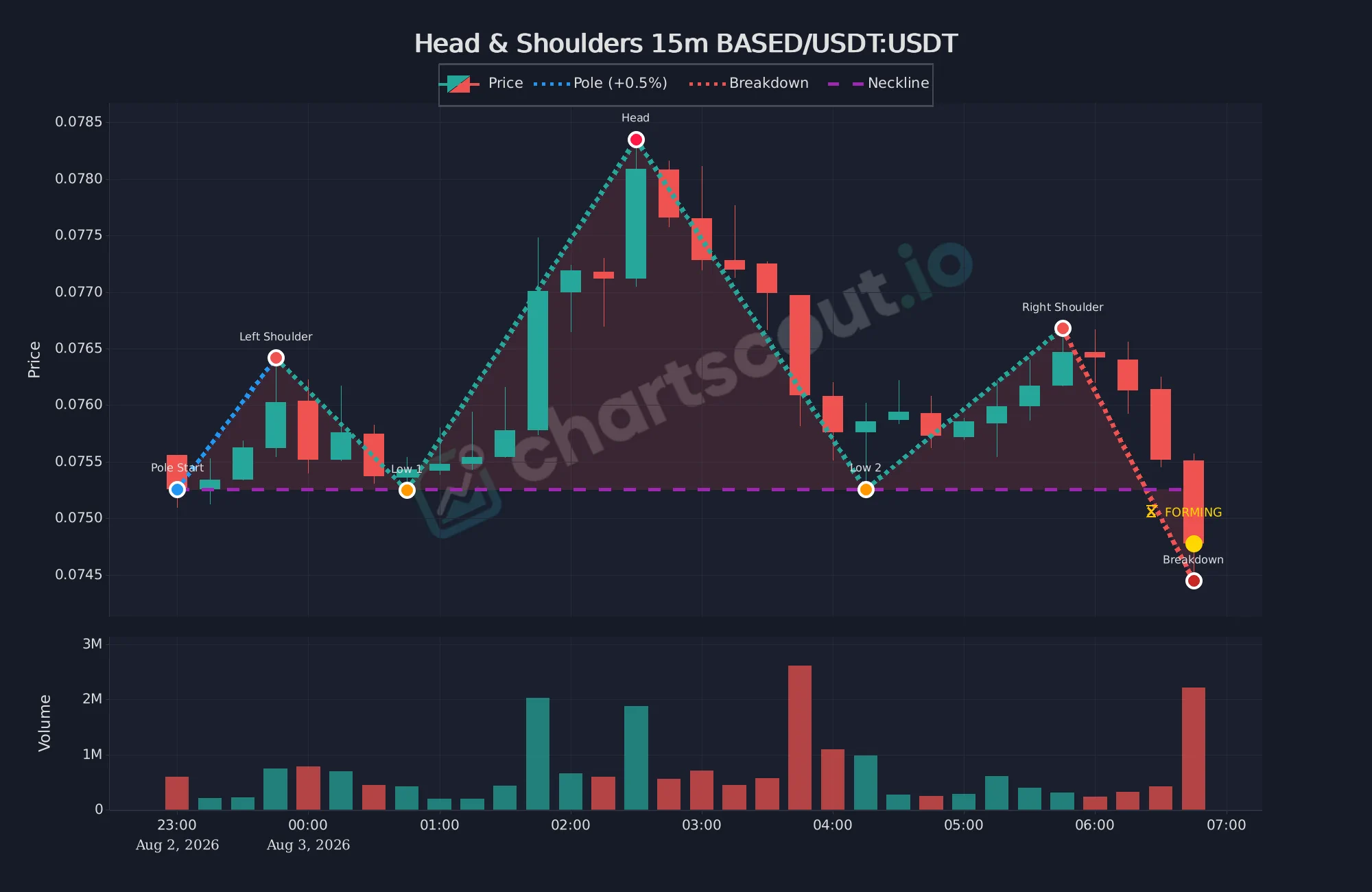

1. Head & shoulders
BearishThree peaks where the middle peak (head) is the highest, flanked by two lower peaks (shoulders). A neckline connects the two troughs between the peaks. When price breaks below the neckline, the reversal is confirmed.
“The head and shoulders is probably the most notorious of all patterns. It forms at tops and bottoms as a reversal formation... Compared to other patterns, such as triangles, the head and shoulders has the reputation for being one of the most reliable.”
- Martin Pring, Martin Pring on Price Patterns
Bulkowski rank: 9 out of 36 bearish patterns
Volume behavior: Volume typically declines from left shoulder to head to right shoulder. The breakdown candle should show a volume spike. Pullbacks after the break tend to have low volume.
Key rules: Stop-loss above the right shoulder. Target = neckline minus the distance from head to neckline. Wait for a neckline close, not just a wick. Horizontal necklines produce the strongest signals.

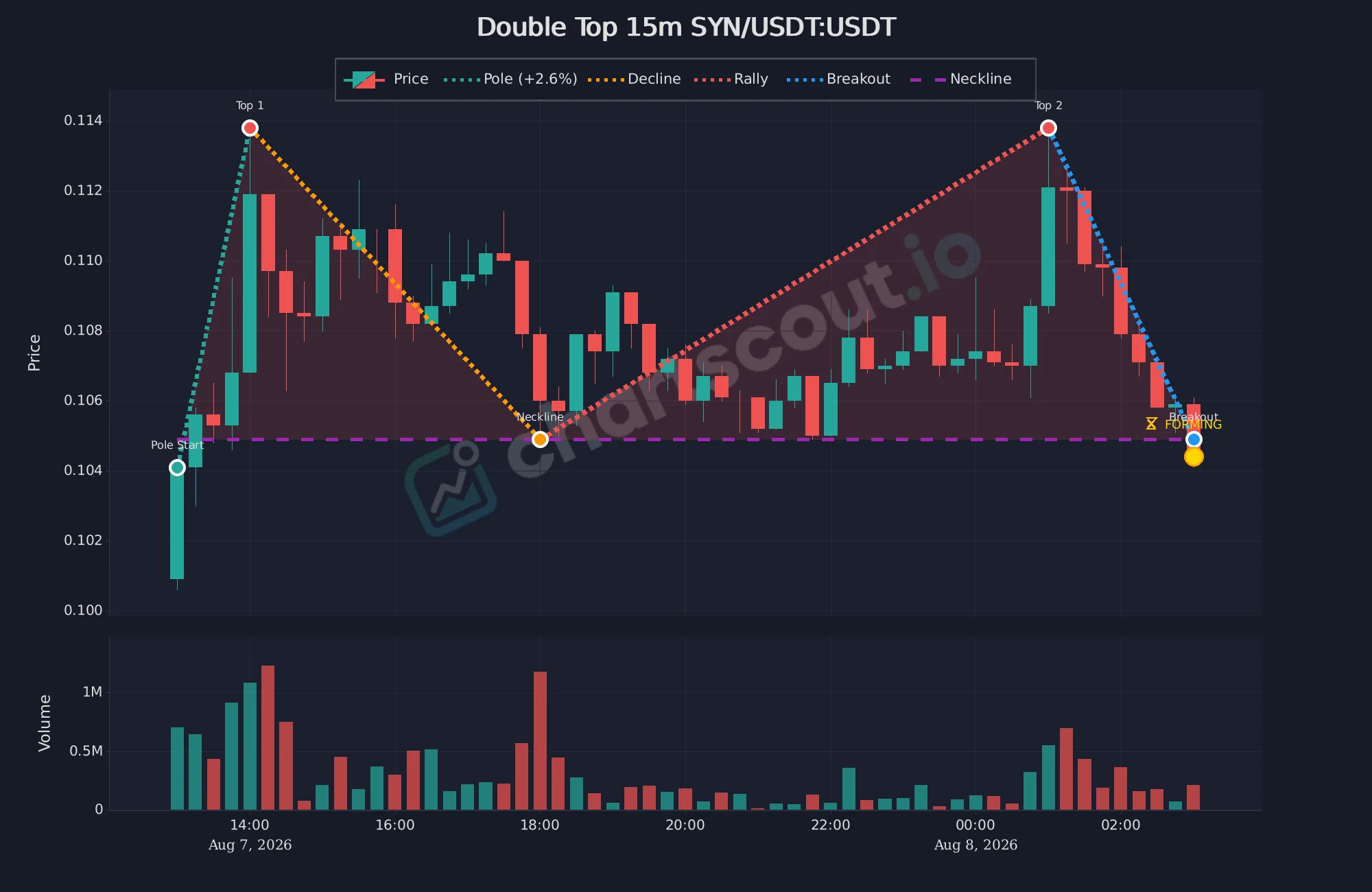

2. Double top
BearishTwo peaks at approximately the same price level (within 2–3%), separated by a trough. Looks like the letter “M.” The neckline is drawn at the trough between the two peaks. A close below the neckline confirms the bearish reversal.
Adam & Adam variant. Bulkowski rank: 19 out of 36 bearish patterns. Eve & Eve variant performs better (80% break-even, rank 12/36).
Volume behavior: Volume on the second peak is typically lower than the first - a sign that buying conviction is fading. Volume should expand on the neckline breakdown. If volume is light on the break, expect a pullback before the decline continues.
Key rules: Stop-loss 1–3% above the second peak. Target = neckline minus the distance from peaks to neckline. The two peaks should be within 2–3% of each other. Unconfirmed double tops - where traders anticipate the breakdown before the neckline breaks - fail the majority of the time. Wait for the neckline break.

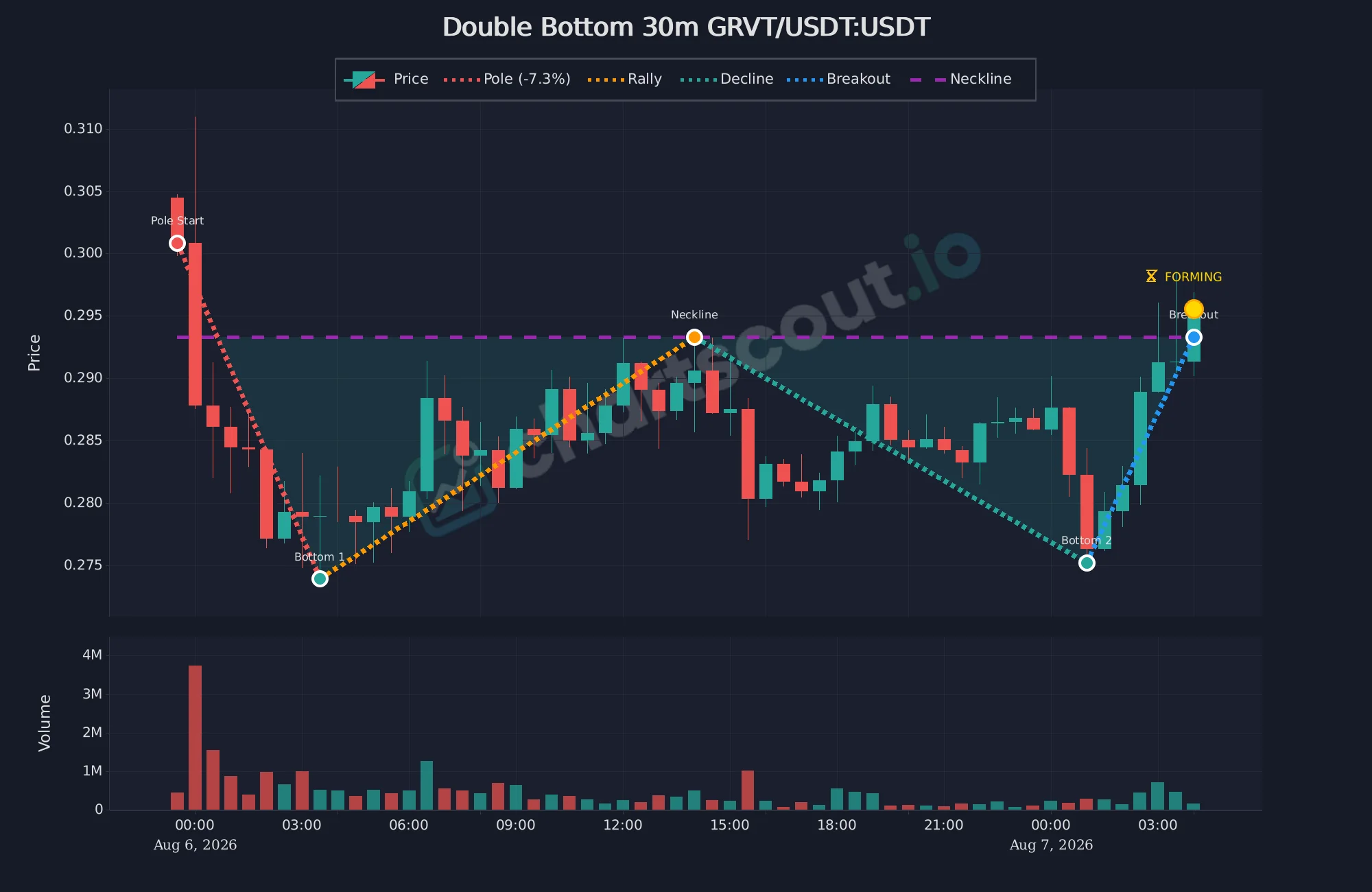

3. Double bottom
BullishTwo troughs at approximately the same price level, separated by a peak. Looks like the letter “W.” The neckline is drawn at the peak between the two troughs. A close above the neckline confirms the bullish reversal.
Adam & Adam variant. Bulkowski rank: 26 out of 39 bullish patterns. The Eve & Eve variant is Bulkowski's #5 best bullish pattern overall, with an 88% break-even rate and 50% average rise.
Volume behavior: Volume is typically higher at the first bottom than the second. The neckline breakout must be accompanied by a volume surge - low-volume breakouts are the most common reason double bottoms fail.
Key rules: Stop-loss below the lower of the two troughs. Target = neckline plus the distance from troughs to neckline. The two troughs should be within 2–4% of each other. Allow at least 2 weeks between troughs for the pattern to be valid.

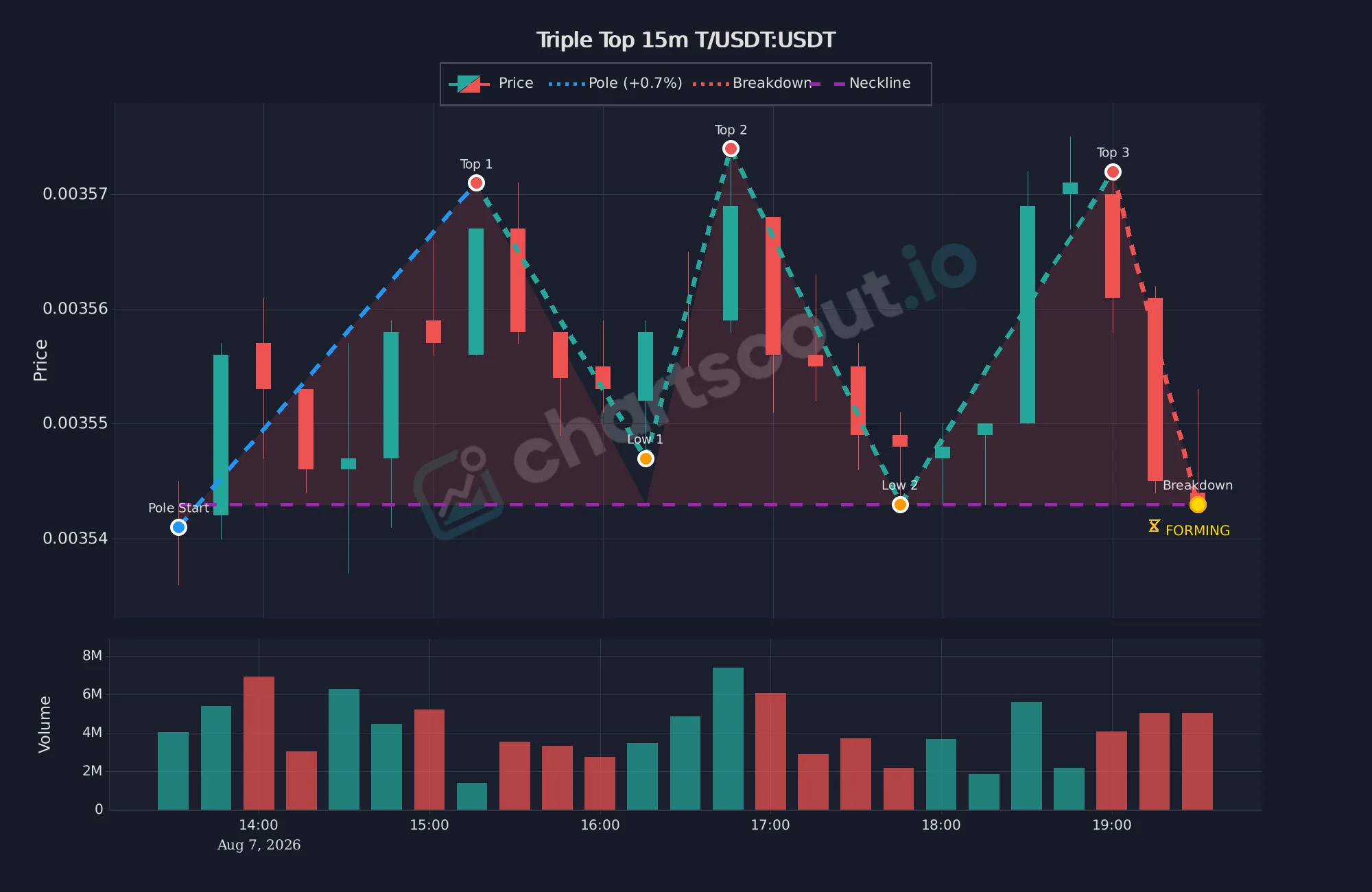

4. Triple top
BearishThree peaks at approximately the same price level, separated by two troughs. The neckline connects the two trough lows. Three failed attempts to break higher is a stronger bearish signal than two. A close below the neckline confirms the reversal.
Bulkowski rank: 24 out of 36 bearish patterns. Note: despite three touches of resistance, triple tops reach their measured-move target less than half the time.
Volume behavior: Volume should decline across each successive peak - each rally to resistance has fewer buyers behind it. The neckline break should show an increase in volume. Light-volume breaks tend to result in pullbacks before continuing lower.
Key rules: Stop-loss above the highest of the three peaks. Target = neckline minus the distance from peaks to neckline. All three peaks should be within 2–4% of each other. Take partial profits aggressively - only 49% of triple tops reach their full target.

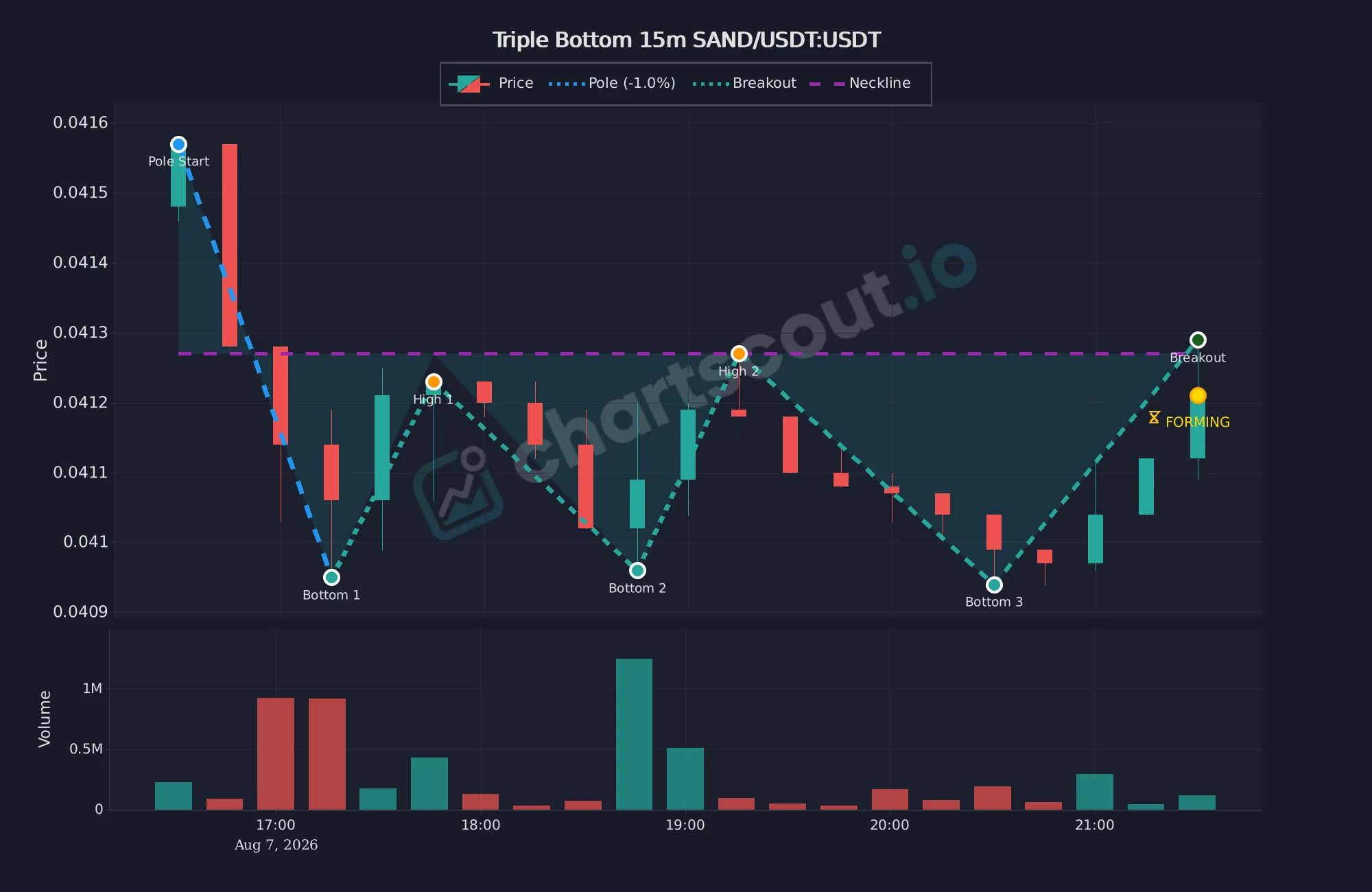

5. Triple bottom
BullishThree troughs at approximately the same price level, separated by two peaks. The neckline connects the two peak highs. Three failed breakdowns at support form an exceptionally strong bullish foundation. A close above the neckline confirms the reversal.
Bulkowski rank: 12 out of 39 bullish patterns. One of the top-tier reversal setups.
Volume behavior: Volume tends to be highest at the first trough and decline at the second and third. The breakout above the neckline must come with a significant volume spike to confirm genuine buying interest.
Key rules: Stop-loss below the lowest of the three troughs. Target = neckline plus the distance from troughs to neckline. All three troughs should be within 2–4% of each other. The longer the pattern takes to form, the more significant the eventual breakout.
Continuation patterns
Continuation patterns form during pauses within an existing trend. They represent a temporary consolidation - a rest stop, not a destination - before price resumes its prior direction. Flags and pennants are the most common, followed by triangles and the cup and handle. These eight patterns are your bread-and-butter for trend-following trades.

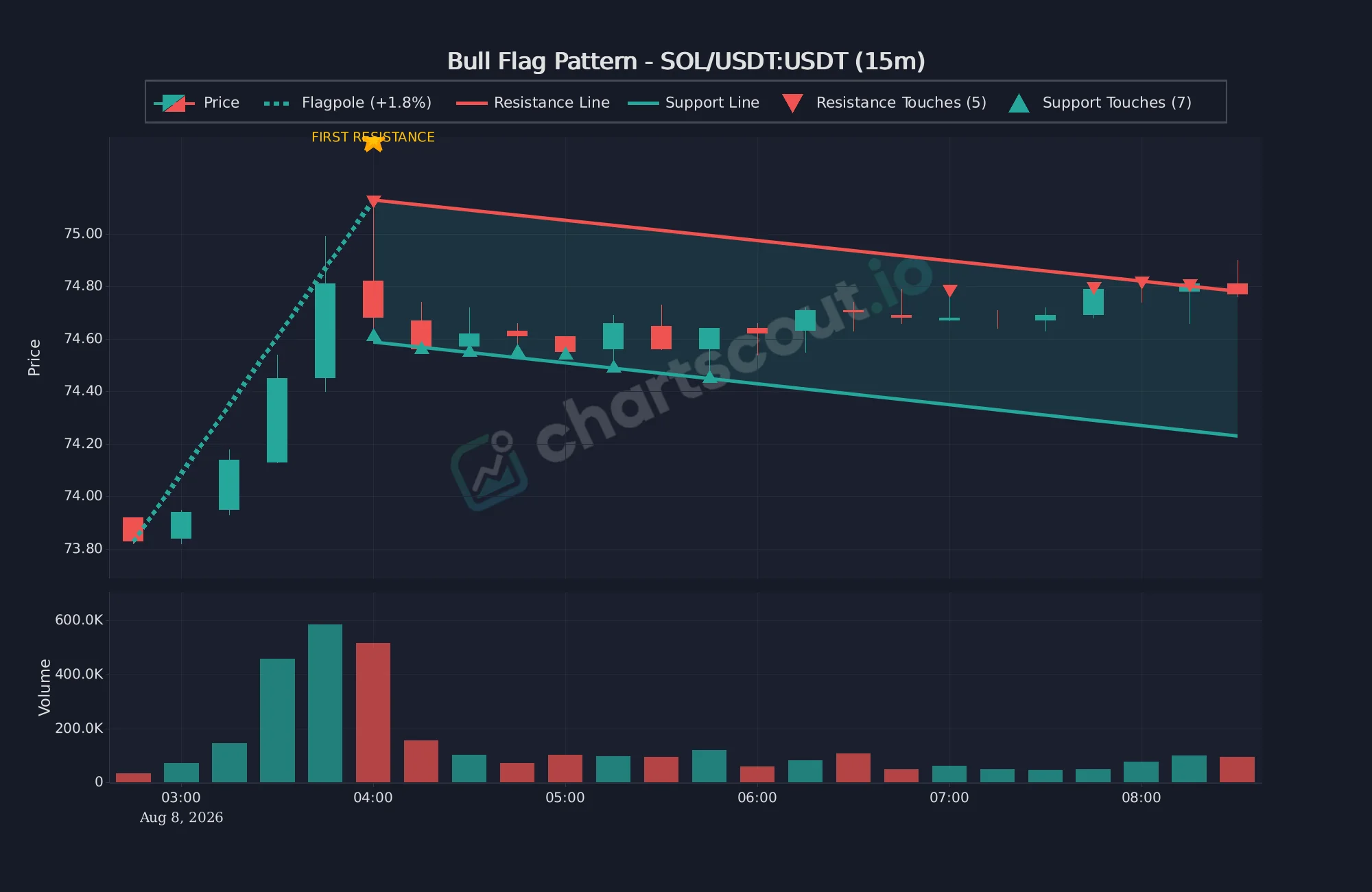

6. Bull flag
BullishA sharp price rally (the flagpole) followed by a downward-sloping parallel channel (the flag). The flag retraces a portion of the pole before price breaks upward to continue the original rally. One of the most popular continuation setups in crypto trading.
Short-term metric: Bulkowski measures flags on short-term price swings, not breakout-to-ultimate-high, so these numbers look lower than the reversal patterns above. For the best-performing flag variant, see the High and Tight Flag: 85% break-even rate, 39% average rise, 82% target-hit rate on a half-height target.
Volume behavior: Volume surges during the flagpole rally, then contracts significantly during the flag consolidation. The breakout above the upper flag boundary must come with a volume spike back to flagpole levels or higher.
Key rules: Stop-loss below the flag's lowest point. Target = flagpole height projected upward from the breakout point. Flags that take too long to form (more than 20 candles) lose their reliability and start behaving like symmetrical triangles.
“On average, flags act as half-staff patterns (the price/time run after the flag is about as long as the one preceding it).”
- Thomas Bulkowski, Encyclopedia of Chart Patterns, 2nd Edition, p. 335

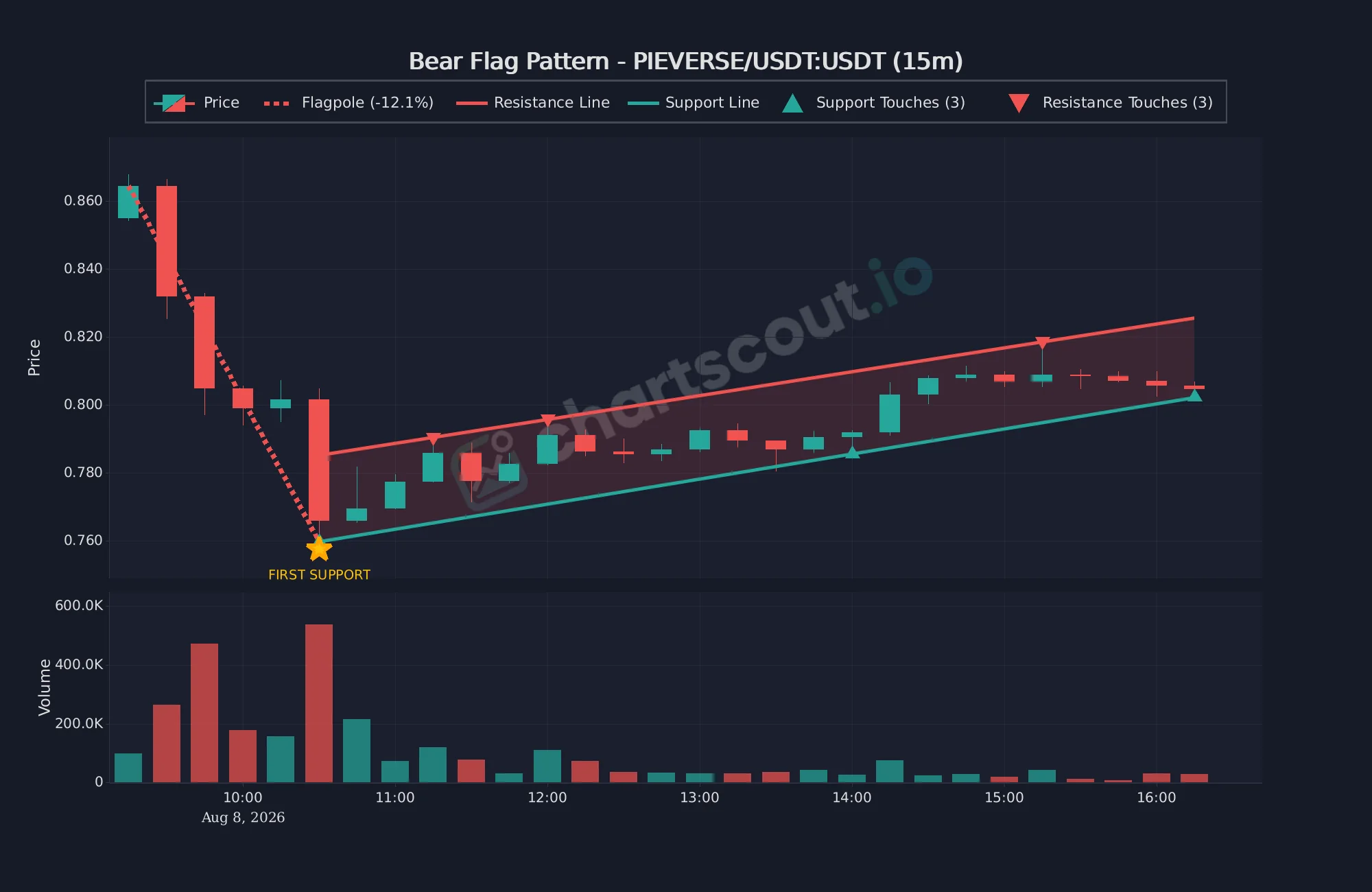

7. Bear flag
BearishThe mirror image of the bull flag: a sharp price decline (flagpole) followed by an upward-sloping parallel channel (flag). The flag retraces a portion of the decline before price breaks downward to continue the sell-off.
Bulkowski measures flags on short-term price swings (same caveat as bull flag). A strong prior downtrend is the single biggest reliability factor.
Volume behavior: Volume is heavy during the flagpole decline, contracts during the upward-sloping flag consolidation, and expands again on the downside breakout. Low volume during the flag indicates sellers are resting, not gone.
Key rules: Stop-loss above the flag's highest point. Target = flagpole height projected downward from the breakout. Bear flags in a strong downtrend resolve faster and more aggressively than those in ranging markets.

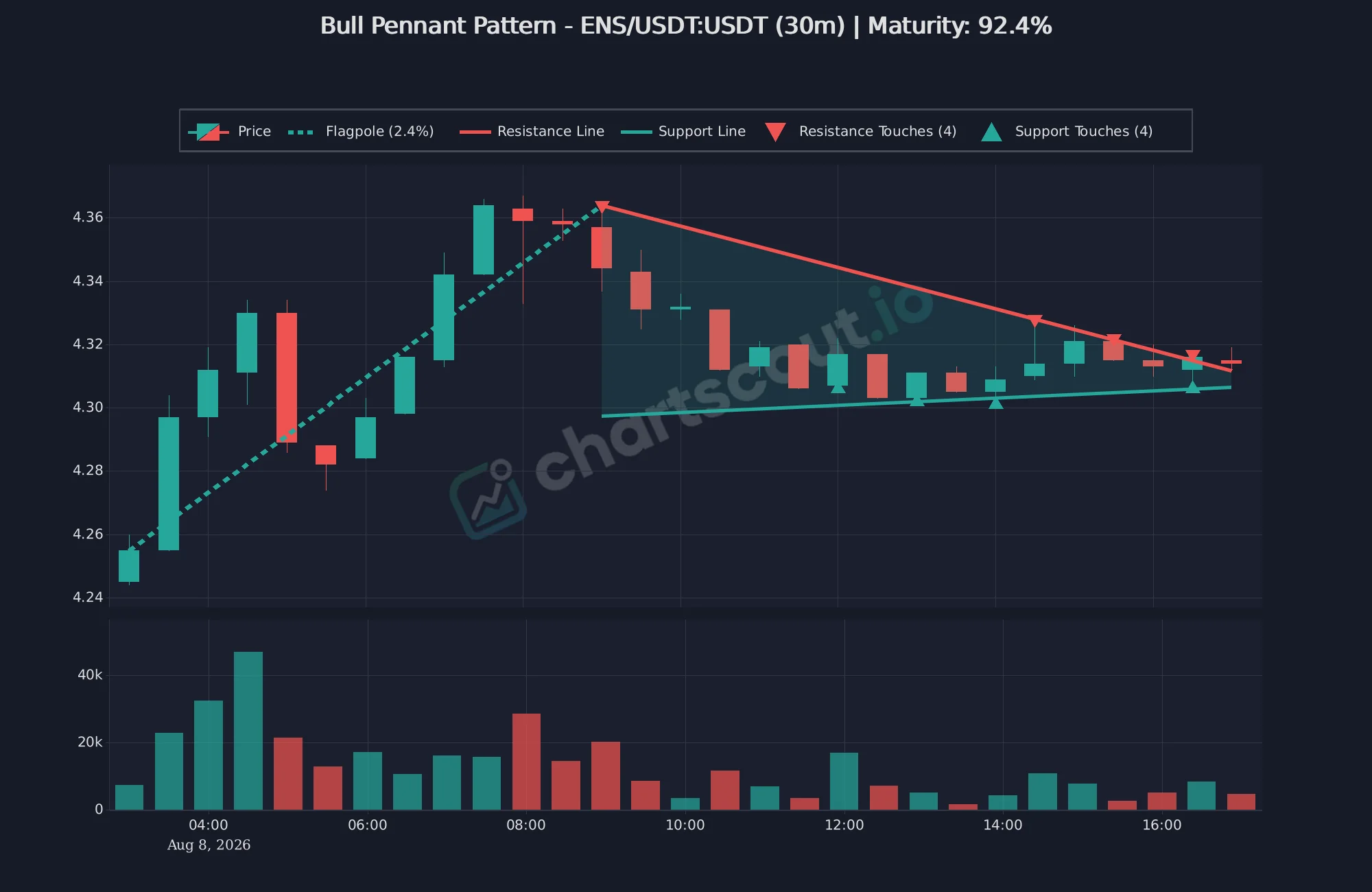

8. Bullish pennant
BullishSimilar to a bull flag but the consolidation forms a small symmetrical triangle (converging trendlines) instead of a parallel channel. The flagpole is followed by a tight coiling pattern that usually resolves upward within 1–3 weeks.
Honest data: Bulkowski measures pennants on short-term swings like flags. The raw numbers are not flattering - a 54% failure rate means more than half of standard pennants fail to move at least 5% past the breakout. Treat pennants as lower-conviction setups and always require strong flagpole momentum before entering.
Volume behavior: Volume contracts steadily as the pennant tightens. The apex of the pennant often has the lowest volume of the entire pattern. The upside breakout must be accompanied by a volume surge to confirm the continuation.
Key rules: Stop-loss below the pennant's lower trendline. Target = flagpole height projected from the breakout. Pennants longer than 3 weeks should be reclassified as symmetrical triangles or wedges and traded accordingly - that is Bulkowski's own definition in the Encyclopedia of Chart Patterns.

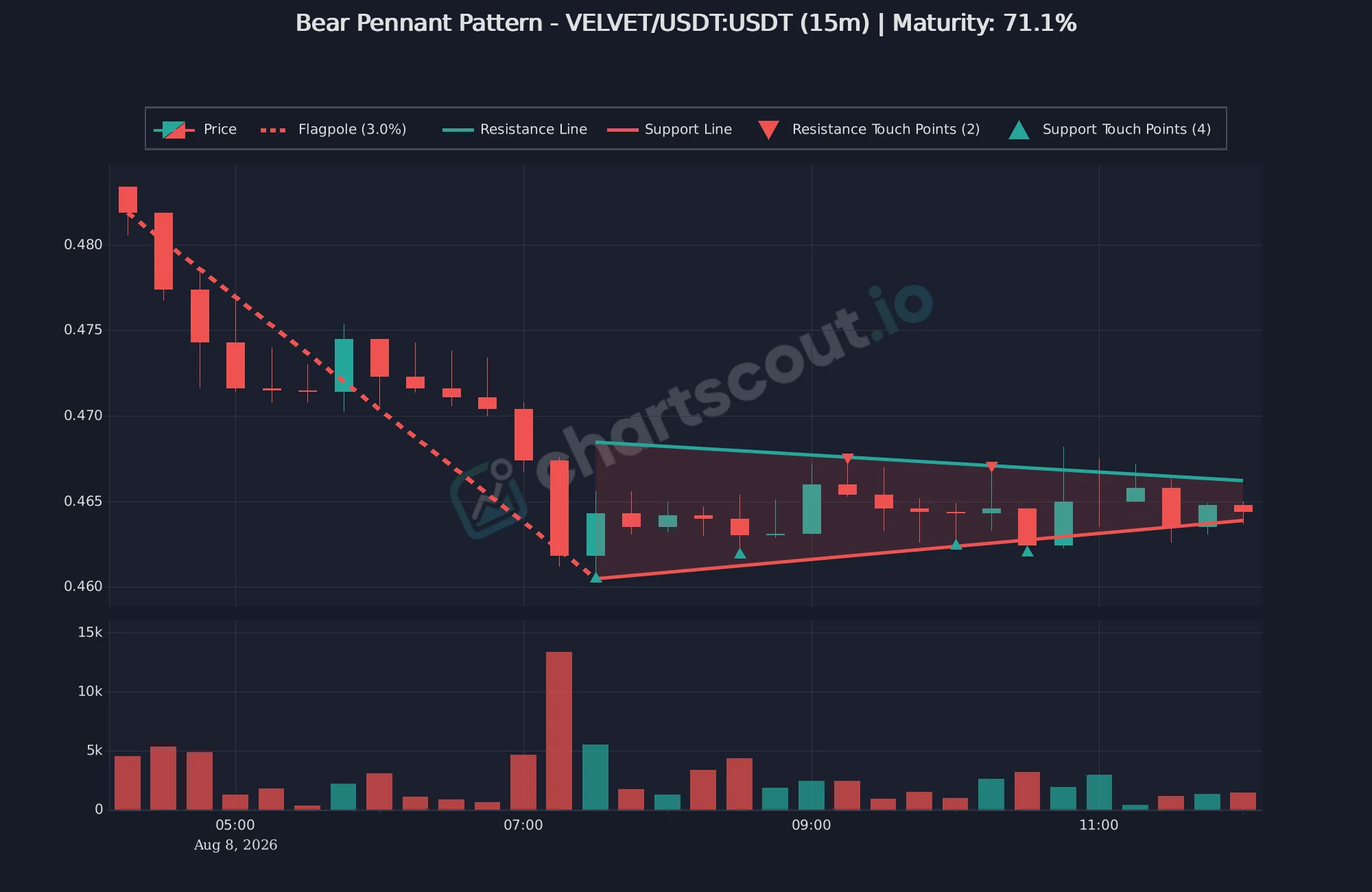

9. Bearish pennant
BearishA sharp decline (flagpole) followed by a small symmetrical triangle consolidation. The converging trendlines compress price before it breaks downward to resume the sell-off. Bearish pennants are brief, volatile, and common in crypto crash sequences.
Same short-term measurement caveat as bull flag and bullish pennant. The strong prior downtrend is the biggest differentiator for reliable bearish pennants.
Volume behavior: Volume contracts during the pennant formation and expands on the downside breakout. Bearish pennants with low-volume consolidation followed by heavy-volume breakdowns are the most reliable.
Key rules: Stop-loss above the pennant's upper trendline. Target = flagpole height projected downward from the breakout. In crypto, bearish pennants often chain together during flash crashes - one pennant breakdown leads to another flagpole and pennant.

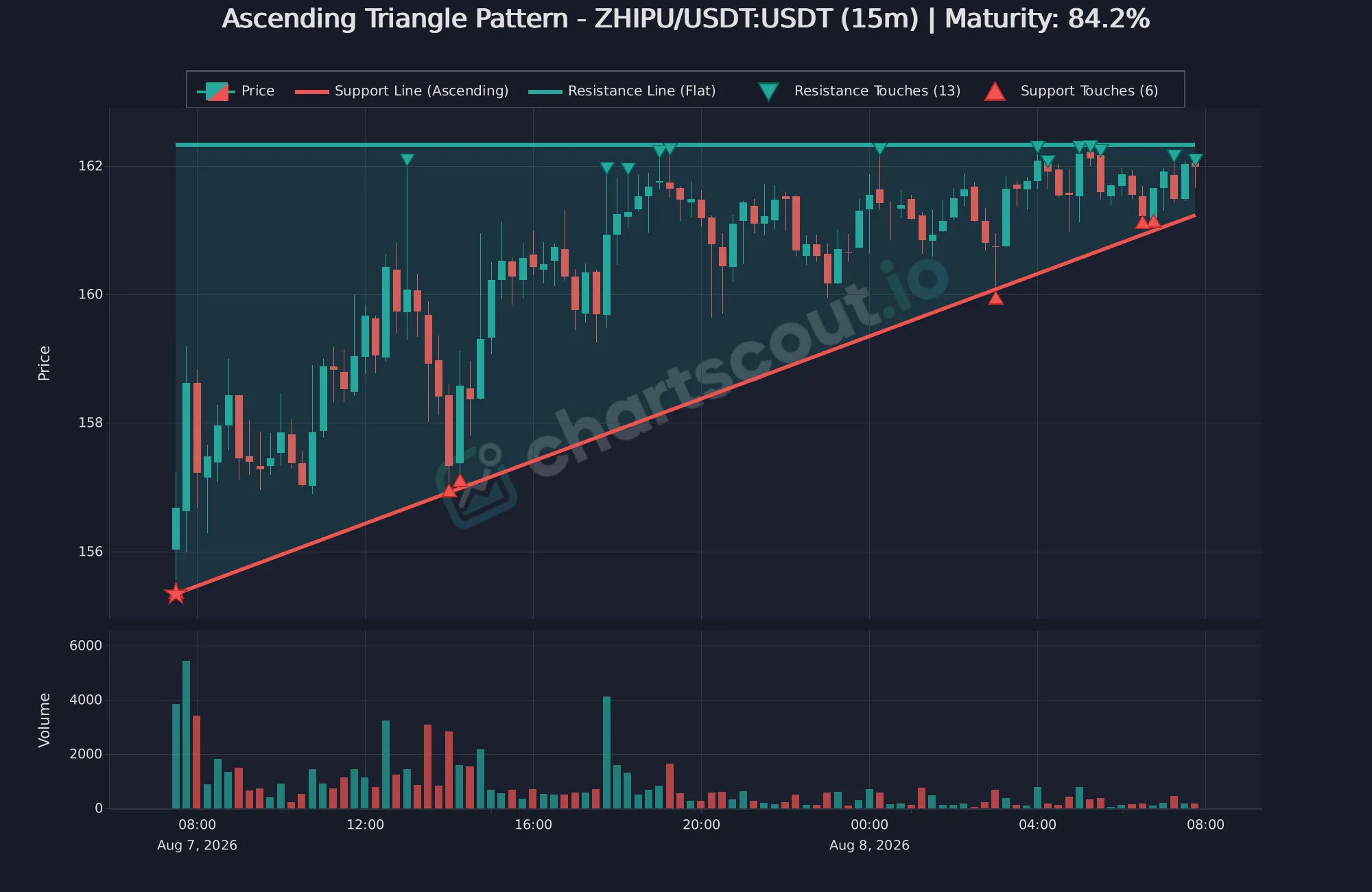

10. Ascending triangle
BullishA flat upper resistance line with a rising lower trendline. Buyers push lows progressively higher while sellers defend a fixed resistance level. Each higher low compresses the range until buyers break through. Considered bullish regardless of the prior trend.
Bulkowski rank: 16 out of 39 bullish patterns. Breaks upward 63% of the time (37% break downward). Based on 1,400+ trades.
Volume behavior: Volume contracts as the triangle narrows. Each bounce off support has progressively lower volume. The breakout above the flat resistance line must show a significant volume increase - this is the confirmation that buyers have finally absorbed all selling pressure at that level.
Key rules: Stop-loss below the most recent higher low. Target = triangle height projected upward from the breakout. Bulkowski's data shows breakouts typically occur about 62% of the way to the apex - breakouts in the first half of the triangle produce the strongest moves, while breakouts near the apex tend to fizzle.

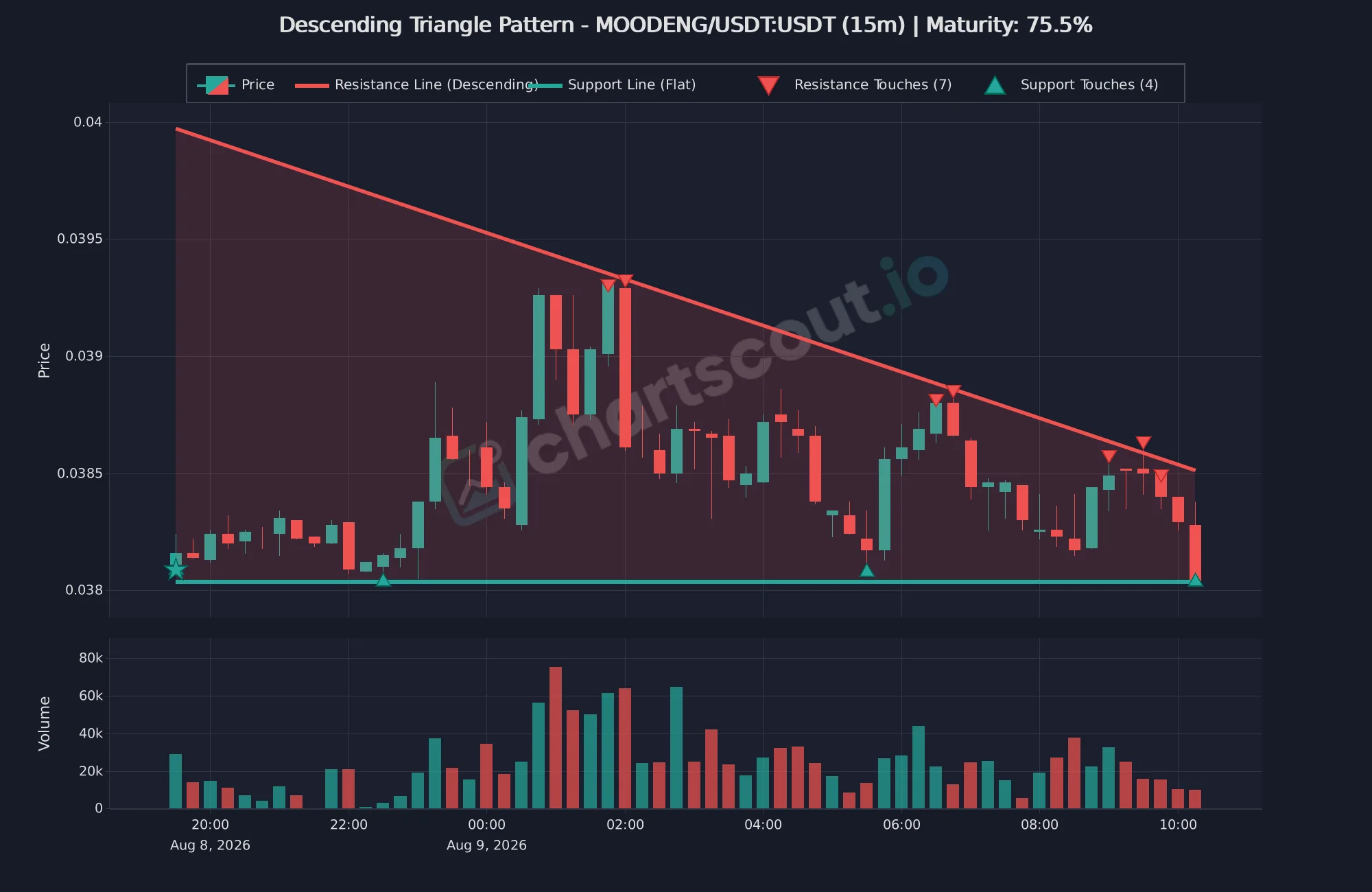

11. Descending triangle
BearishA flat lower support line with a falling upper trendline. Sellers push highs progressively lower while buyers defend a fixed support level. Each lower high increases bearish pressure until support breaks. Considered bearish regardless of the prior trend.
Bulkowski rank: 15 out of 36 bearish patterns. Breaks downward 47% of the time - counter-intuitively, descending triangles break UP more often than down (53%), but when they do break down, the 77% break-even rate is respectable.
Volume behavior: Volume contracts as the triangle narrows. Each test of support has progressively lower volume as buyers weaken. The breakdown below flat support should show expanding volume.
Key rules: Stop-loss above the most recent lower high. Target = triangle height projected downward from the breakdown point. Descending triangles in an existing downtrend are more reliable than those forming in uptrends.

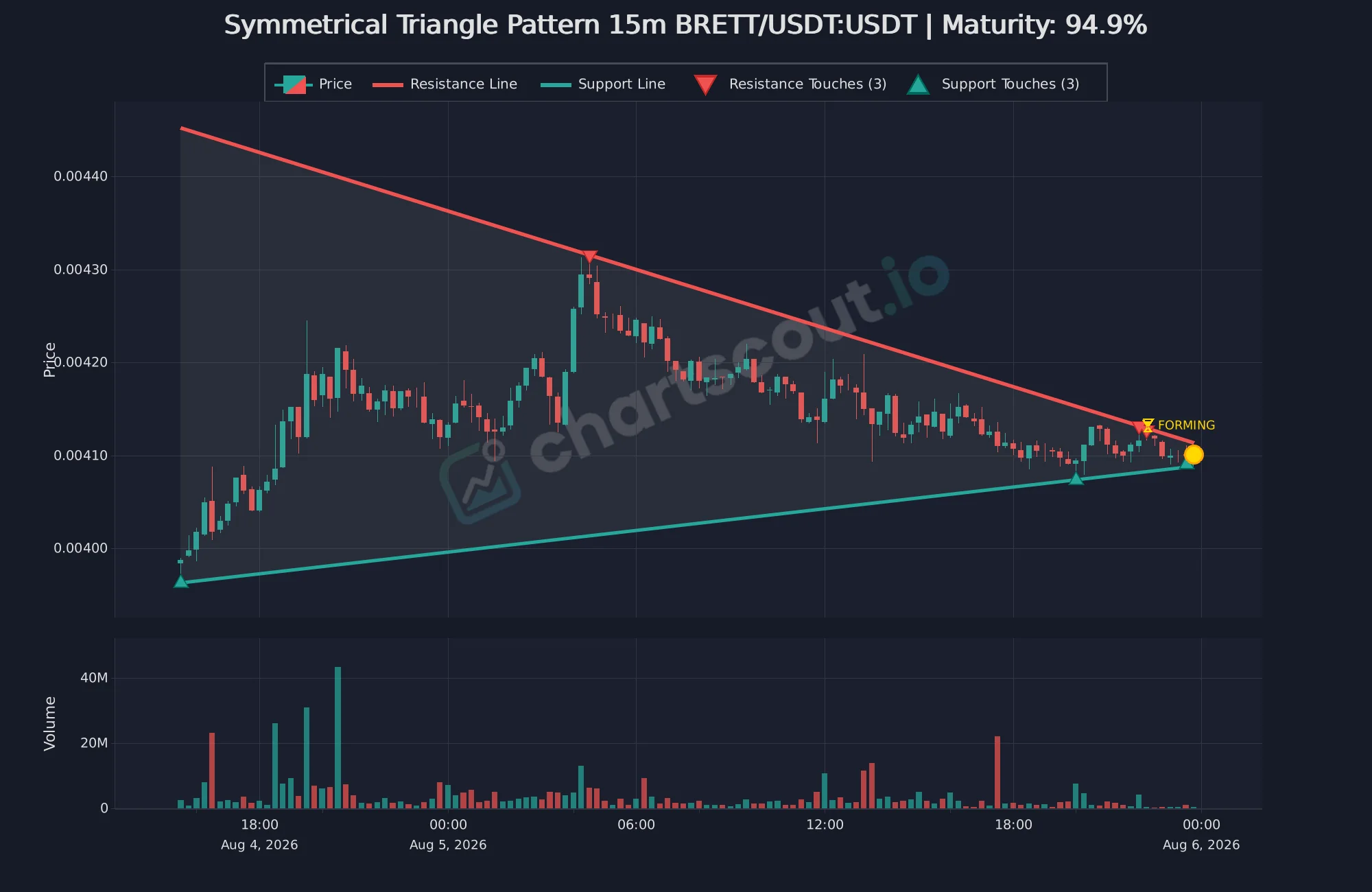

12. Symmetrical triangle
Neutral (trend-dependent)Converging trendlines where both the upper line slopes down and the lower line slopes up, compressing price into a narrowing range. Breaks in the direction of the prior trend approximately 60% of the time.
Honest data: Bulkowski ranks the symmetrical triangle 36 out of 39 bullish patterns on upward breakouts and 34 out of 36 bearish patterns on downward breakouts. In his own words: “performance is awful.” It breaks upward 60% of the time. Use this pattern for direction-neutral confirmation of a bigger trend, not as a standalone signal.
Volume behavior: Volume declines steadily as the triangle narrows. The breakout direction (up or down) must be confirmed by a volume spike. Low-volume breakouts from symmetrical triangles have a high failure rate.
Key rules: Wait for the breakout - do not predict direction. Stop-loss on the opposite side of the triangle. Target = widest point of the triangle projected from the breakout. Breakouts should occur in the first 50–75% of the triangle's length before the apex.
“When price moves less than 5% and then returns to the triangle and stages a breakout on the opposite side, the triangle is a so-called busted pattern, and the move in the new breakout direction is likely to be large.”
- Thomas Bulkowski, Encyclopedia of Chart Patterns, 2nd Edition

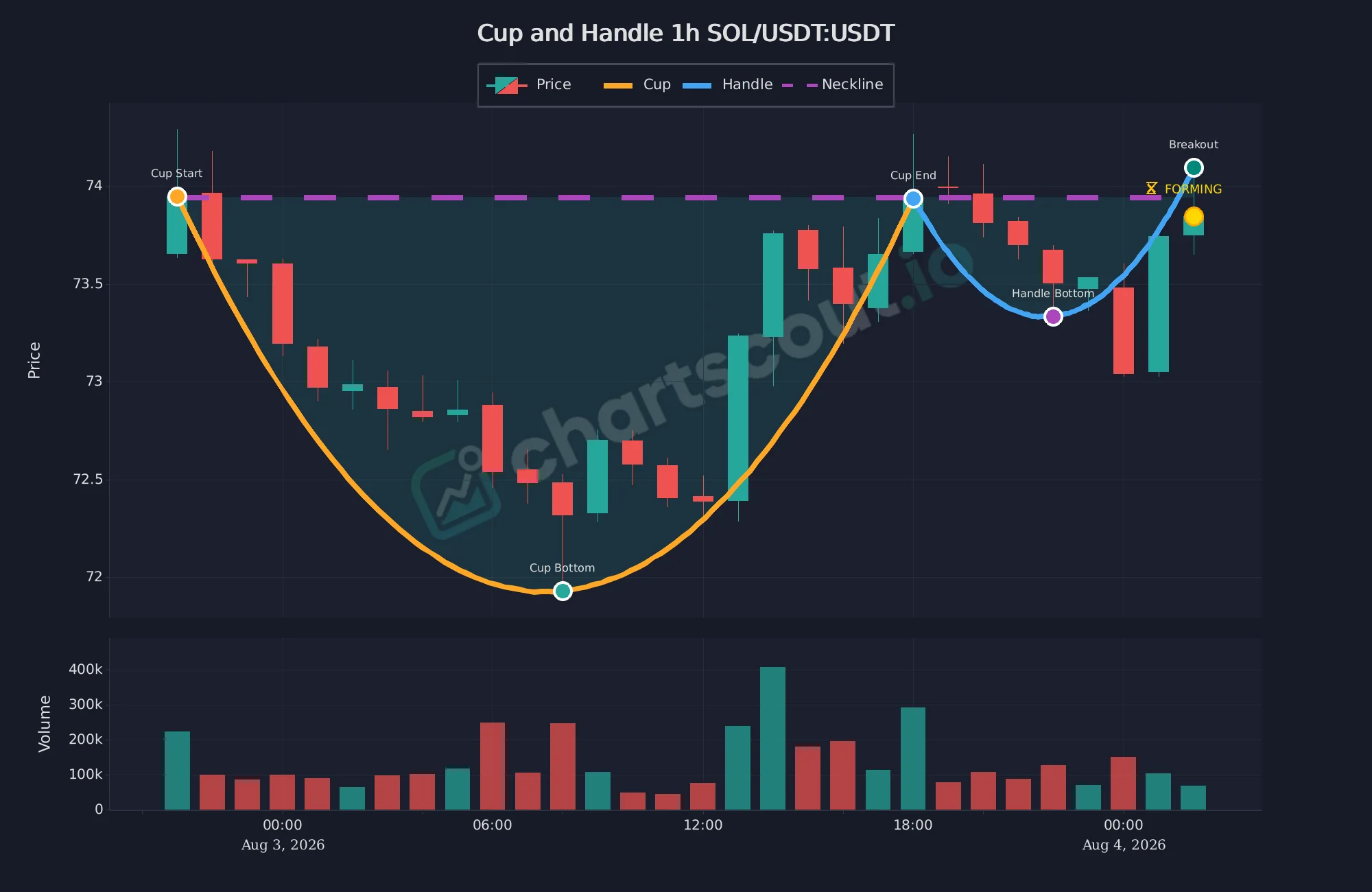

13. Cup and handle
BullishA rounded bottom (the cup) followed by a smaller pullback (the handle) that forms near the cup's highs. Price then breaks out above the handle's resistance to continue higher. The cup should be U-shaped, not V-shaped, and typically takes weeks to form. Named by William O'Neil in How to Make Money in Stocks and ranked by Bulkowski as one of the best-performing bullish patterns.
Bulkowski rank: 3 out of 39 bullish patterns. Only a 5% failure rate on a sample of 913 trades. One of the single best pattern setups in all of technical analysis.
Volume behavior: Volume should be heavy at the start of the cup (during the decline), dry up at the bottom of the cup, then pick up again as price rallies toward the cup's highs. During the handle, volume contracts. The breakout above the handle's resistance requires a clear volume surge.
Key rules: Cup depth should be between 12% and 33%. Handle should retrace no more than 50% of the cup's rise from low to high. Stop-loss below the handle's low. Target = cup depth projected upward from the breakout point. Avoid cups that are too deep (>33%) or too shallow (<12%) - Bulkowski's best performers sit in that range.
Wedge patterns
Wedges are converging trendlines where both lines slope in the same direction - either up (rising wedge) or down (falling wedge). Unlike triangles where one line is flat or they converge symmetrically, wedges tilt. This tilt is what makes them counter-trend: a rising wedge is bearish, and a falling wedge is bullish. Both wedges are among the worst-performing patterns in Bulkowski's catalog - trade them with caution.

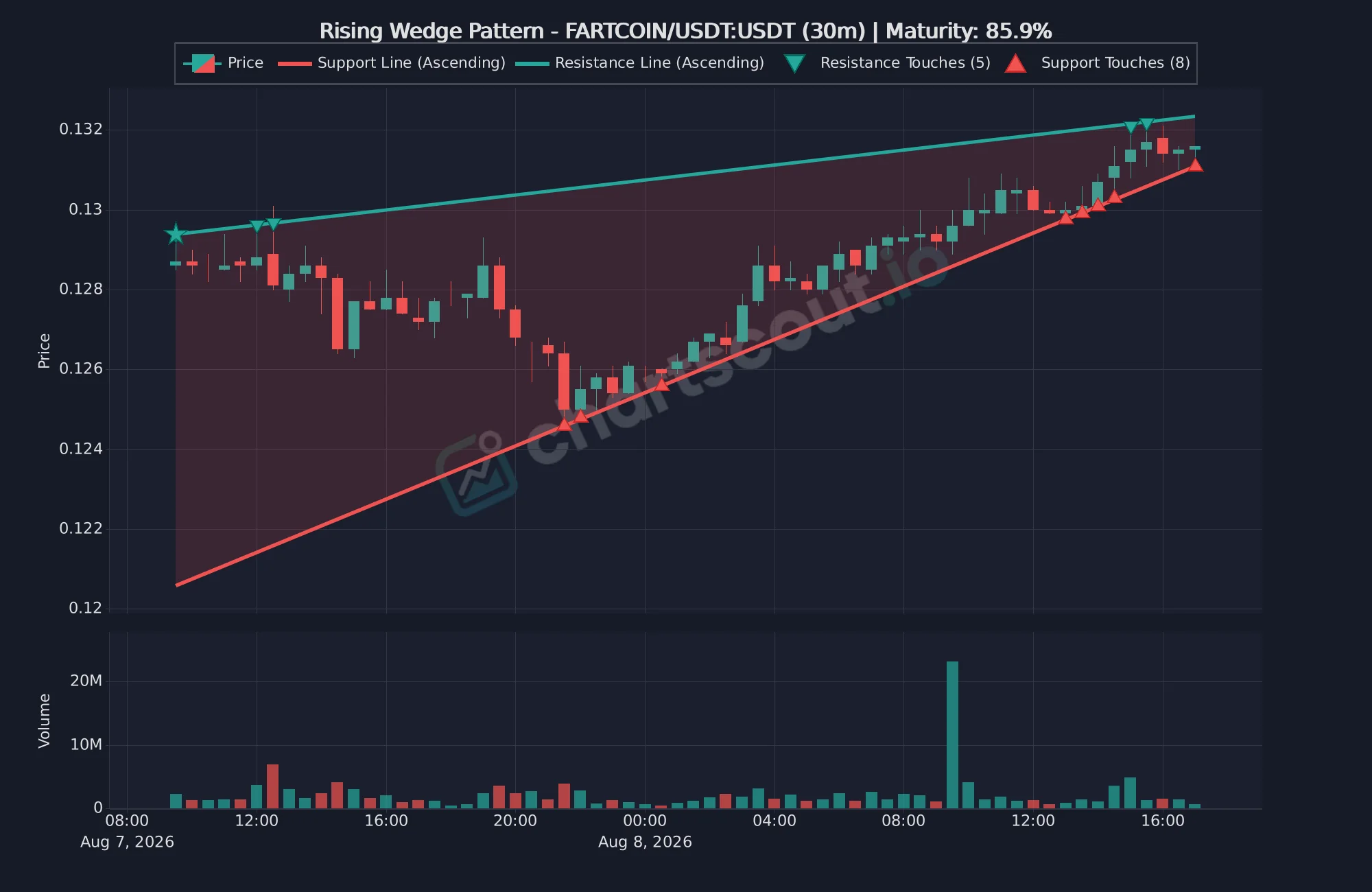

14. Rising wedge
BearishBoth trendlines slope upward, but the lower trendline rises more steeply than the upper one, creating a narrowing range that tilts upward. Price makes higher highs and higher lows, but the momentum is decelerating. The eventual breakdown below the lower trendline confirms the bearish signal - in theory. In practice, rising wedges have the worst downward performance of any bearish pattern in Bulkowski's catalog.
Warning: Bulkowski ranks rising wedges with downward breakouts 36 out of 36 bearish patterns - dead last. The pattern breaks down 60% of the time, but those breakdowns fail to move 5% half the time, the average decline is only 9%, and only 32% reach the measured-move target. Use strict risk management if you trade this pattern.
Volume behavior: Volume declines as the wedge develops - this is one of the strongest confirmation signals. Each push higher has less conviction behind it. The breakdown should show a volume increase, though wedge breakdowns sometimes start on low volume and accelerate.
Key rules: Stop-loss above the most recent high inside the wedge. Target = the full height of the wedge projected downward from the breakdown, or at minimum a retest of the wedge's starting point. Requires at least 3 touches on each trendline for validity.
“Rising wedges are lousy performers. In all market conditions and breakout directions, the average rise or decline is below the average for all other chart patterns... Not trading a wedge until after the breakout is almost always a wise course of action.”
- Thomas Bulkowski, Encyclopedia of Chart Patterns, 2nd Edition

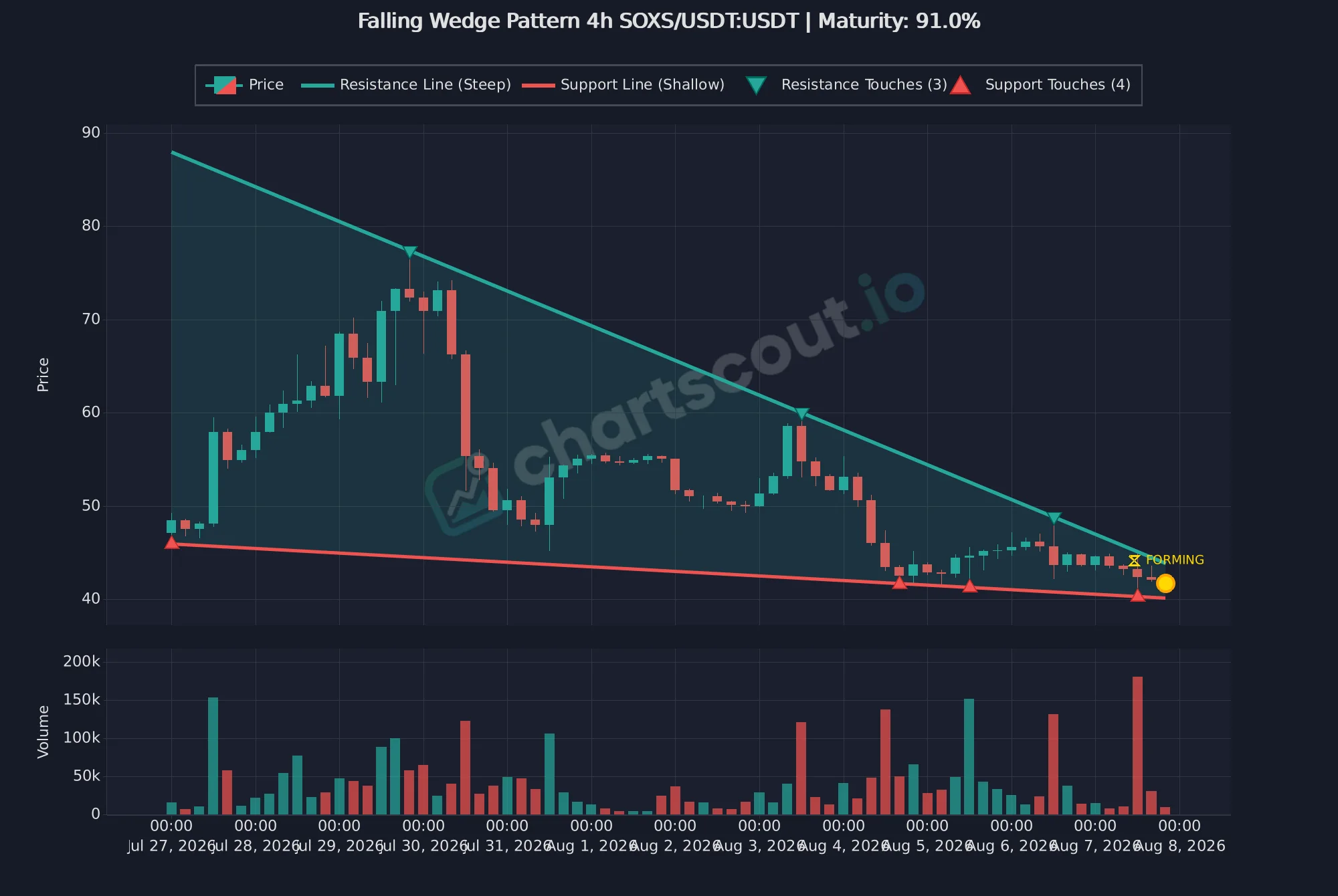

15. Falling wedge
BullishBoth trendlines slope downward, but the upper trendline descends more steeply than the lower one, creating a narrowing range that tilts downward. Price makes lower highs and lower lows, but selling pressure weakens with each push lower. The breakout above the upper trendline confirms the bullish signal - though unlike popular claims, falling wedges do not break upward every time. Bulkowski's data shows they break up 68% of the time.
Bulkowski rank: 31 out of 39 bullish patterns. Middling performer despite a respectable 74% break-even rate - the issue is that upward breakouts only occur 68% of the time, and the downward-breakout variant is a disaster.
Volume behavior: Volume declines through the wedge, often reaching its lowest point near the apex. The upside breakout requires a clear volume surge. Falling wedges with breakout volume above the 20-period average produce the largest subsequent rallies.
Key rules: Stop-loss below the most recent low inside the wedge. Target = the full height of the wedge projected upward from the breakout. In crypto, falling wedges frequently form during corrections within larger bull markets and produce explosive recoveries when the larger trend reasserts itself.
Channel patterns
Channels are parallel trendlines containing price within a defined range. Unlike triangles and wedges that converge, channels maintain a consistent width. Traders play channels in two ways: trading the bounces between the channel walls, or trading the eventual channel breakout. Both approaches work, but the breakout is the higher-probability move.
DATA NOTICE: Unlike the other patterns in this cheat sheet, channels have no published Bulkowski statistics. He writes on thepatternsite.com: “I haven't studied channels for performance.” The trading rules below reflect conventional technical analysis practice rather than statistical research.

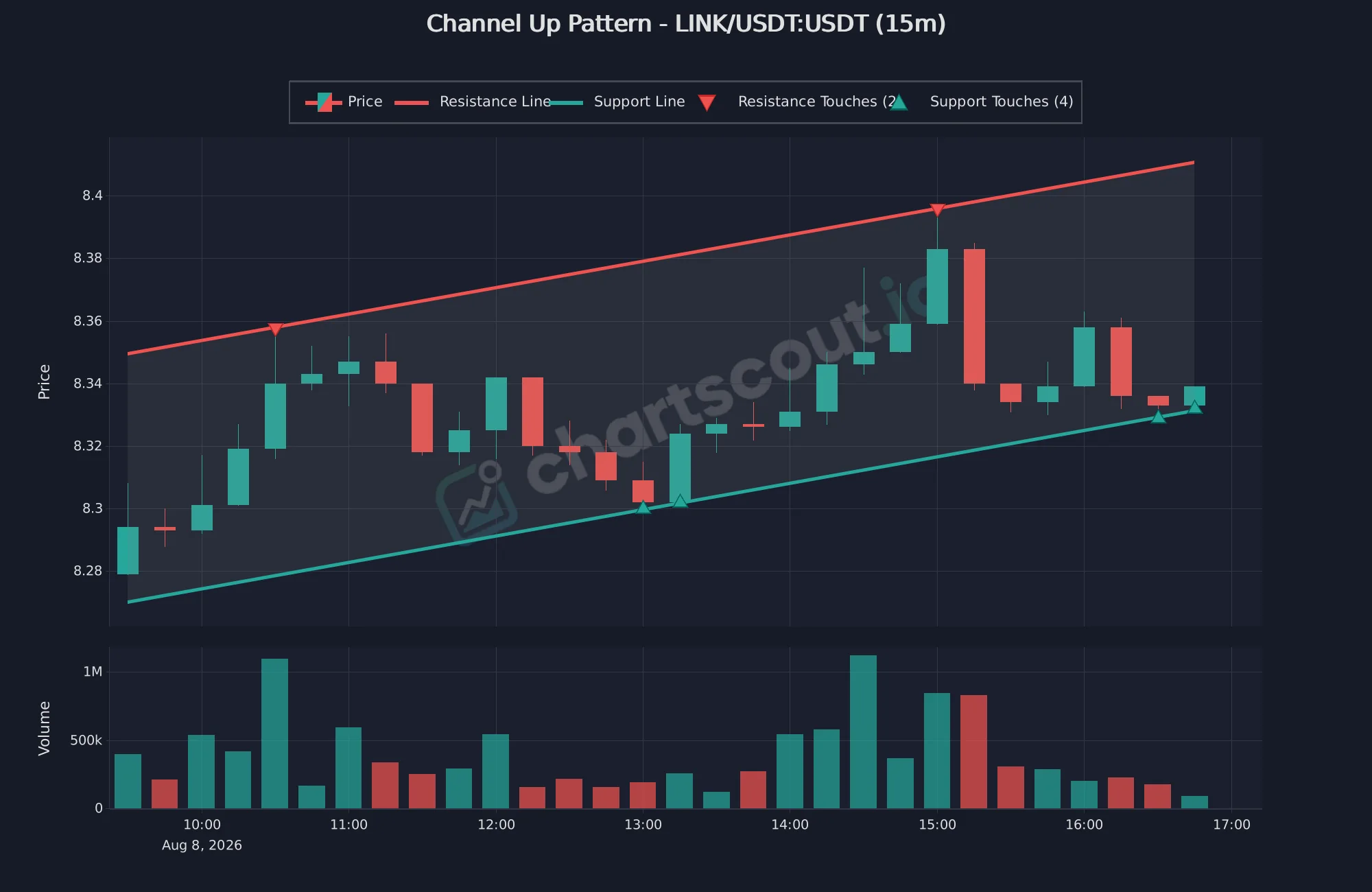

16. Ascending channel
Bullish (until break)Two parallel upward-sloping trendlines containing price in an orderly uptrend. The lower line acts as support, the upper as resistance. Price bounces between these walls in a staircase pattern of higher highs and higher lows. A break below the lower trendline signals the uptrend is over.
Volume behavior: Volume tends to be higher on bounces off the lower trendline (support) and lower as price approaches the upper trendline (resistance). A breakdown below support with expanding volume confirms the channel has ended. (No Bulkowski statistical data.)
Key rules: Buy at the lower trendline with a stop below it. Sell at the upper trendline or trail a stop. For the breakdown trade: short when price closes below the lower trendline, stop above it, target = channel width projected downward. Ascending channels that persist for weeks are common in crypto bull markets.
“The return line is useful from two points of view. First, it represents an area of support or resistance, depending on the direction of the trend. Second, and perhaps more important, penetration of the return trendline represents a signal that either the trend will accelerate or a reversal in the basic trend of at least a temporary proportion is about to take place.”
- Martin Pring, Martin Pring on Price Patterns

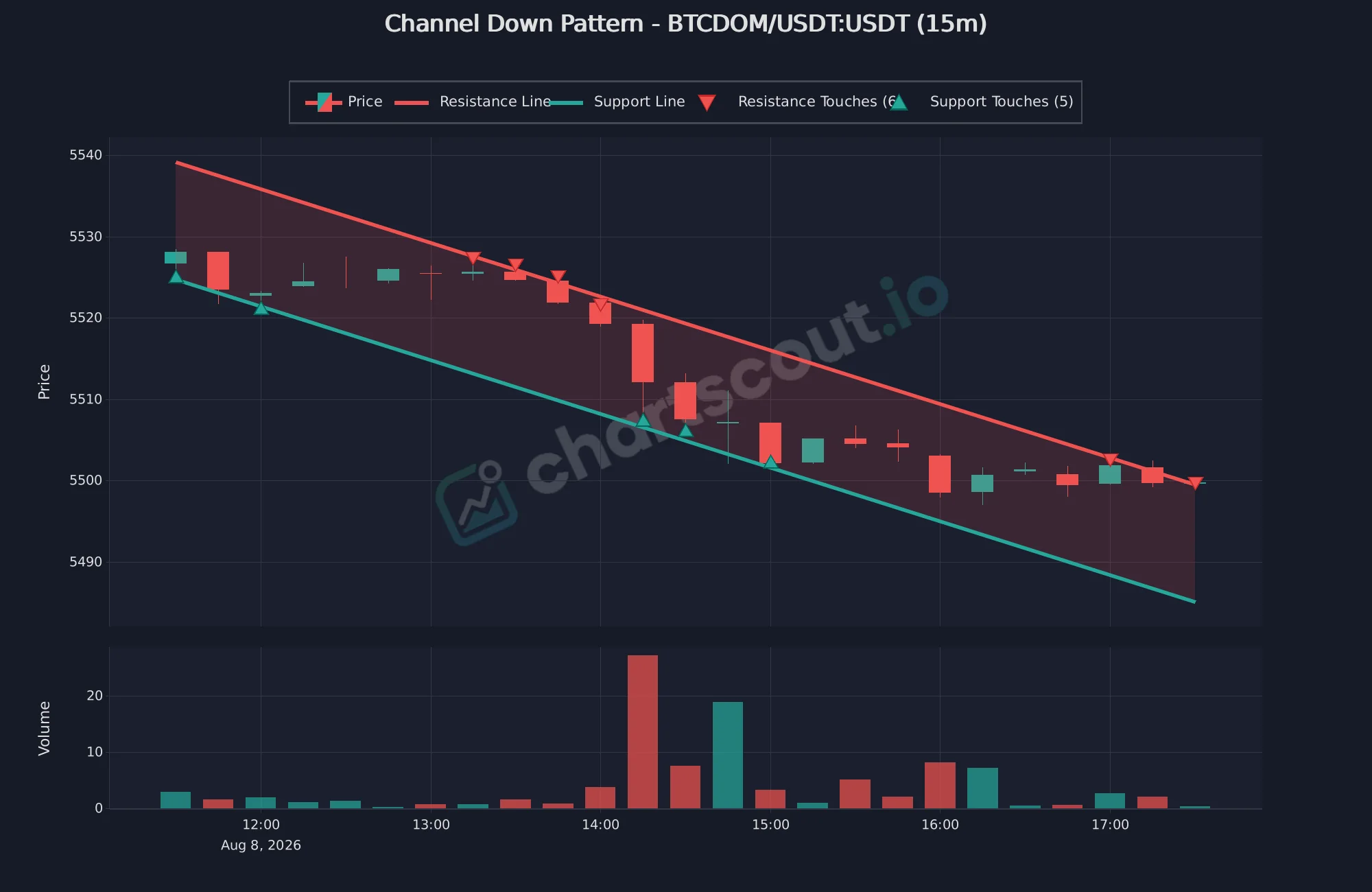

17. Descending channel
Bearish (until break)Two parallel downward-sloping trendlines containing price in an orderly downtrend. Lower lows and lower highs form within the channel. A break above the upper trendline signals the downtrend may be reversing. Common during crypto corrections and bear markets.
Volume behavior: Volume spikes on selloffs toward the lower trendline and contracts on relief rallies toward the upper trendline. A breakout above the upper trendline with heavy volume signals accumulation is complete and the trend is reversing.
Key rules: Buy on bounces off the lower trendline for channel trades. For the breakout: go long when price closes above the upper trendline, stop below it, target = channel width projected upward. In crypto, descending channels that last 3+ weeks often end with a violent breakout rally.
Indicator signals
These three signals are not geometric chart patterns - they are mechanical, math-based triggers derived from price and moving averages. The crossover (50/200 SMA) and the two DeMark Sequential patterns (TD Setup and TD Countdown) catch trend exhaustion and regime change in a way that geometric patterns cannot. They require no visual interpretation, which is what makes them ideal for automated scanning across 1,000+ pairs.

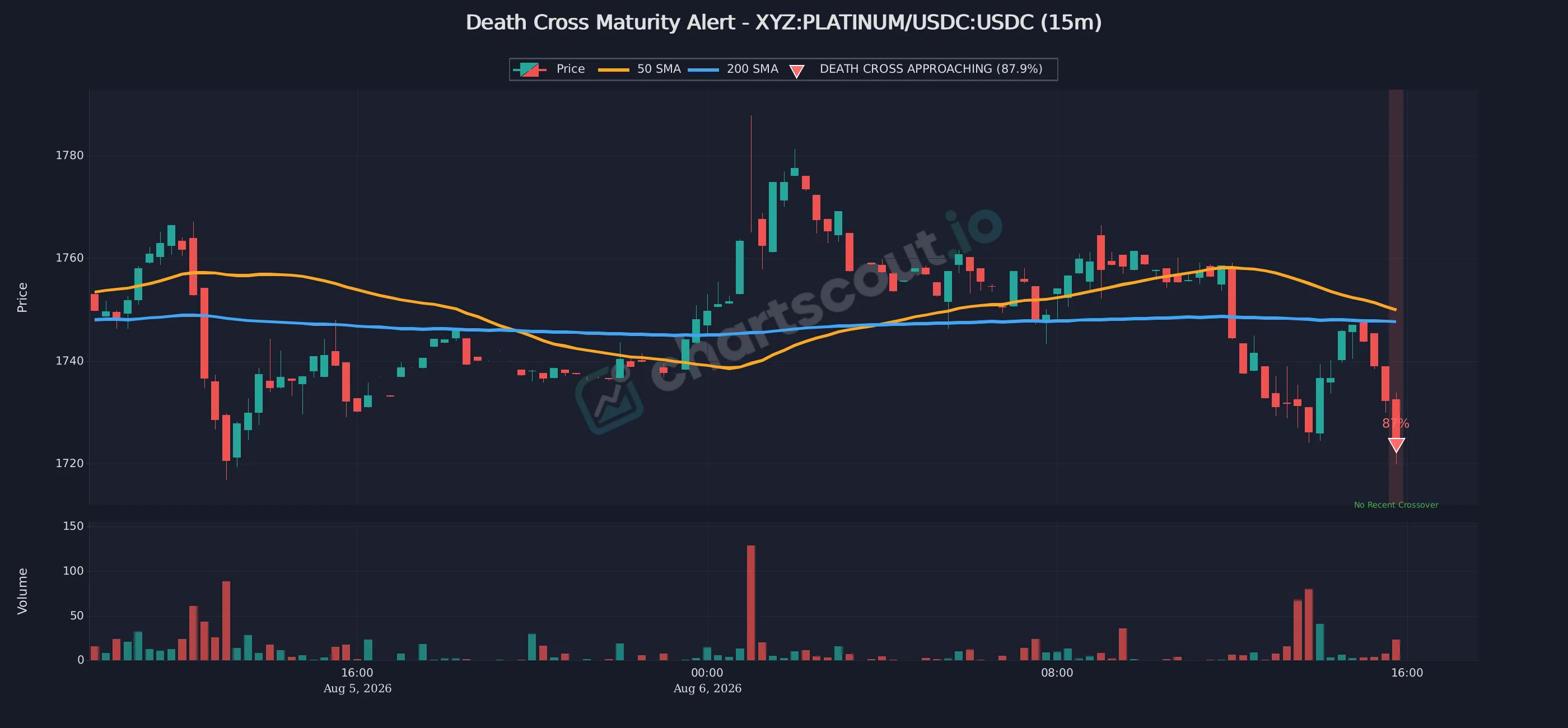

18. Crossover (golden / death cross)
BidirectionalThe 50-period simple moving average crosses the 200-period SMA. When the 50 crosses above the 200, it is the golden cross - a bullish regime-change signal. When the 50 crosses below the 200, it is the death cross - a bearish regime-change signal. ChartScout detects both directions from a single crossover script, alerting you at the moment the two averages meet on any monitored pair and timeframe.
No Bulkowski statistical ranking - crossovers are moving average events, not geometric patterns.
Volume behavior: Less directly relevant than for geometric patterns, but crossovers accompanied by expanding volume tend to mark cleaner regime changes. A crossover on thin volume is often retraced within a few candles.
Key rules: Crossovers are lagging by construction - by the time the 50 crosses the 200, price has usually already moved significantly in the new direction. Treat them as trend confirmation, not as entry signals. Wait for 2-3 candle closes with the averages still crossed to filter out whipsaws. Combine with support/resistance or a pullback for actual entry timing.

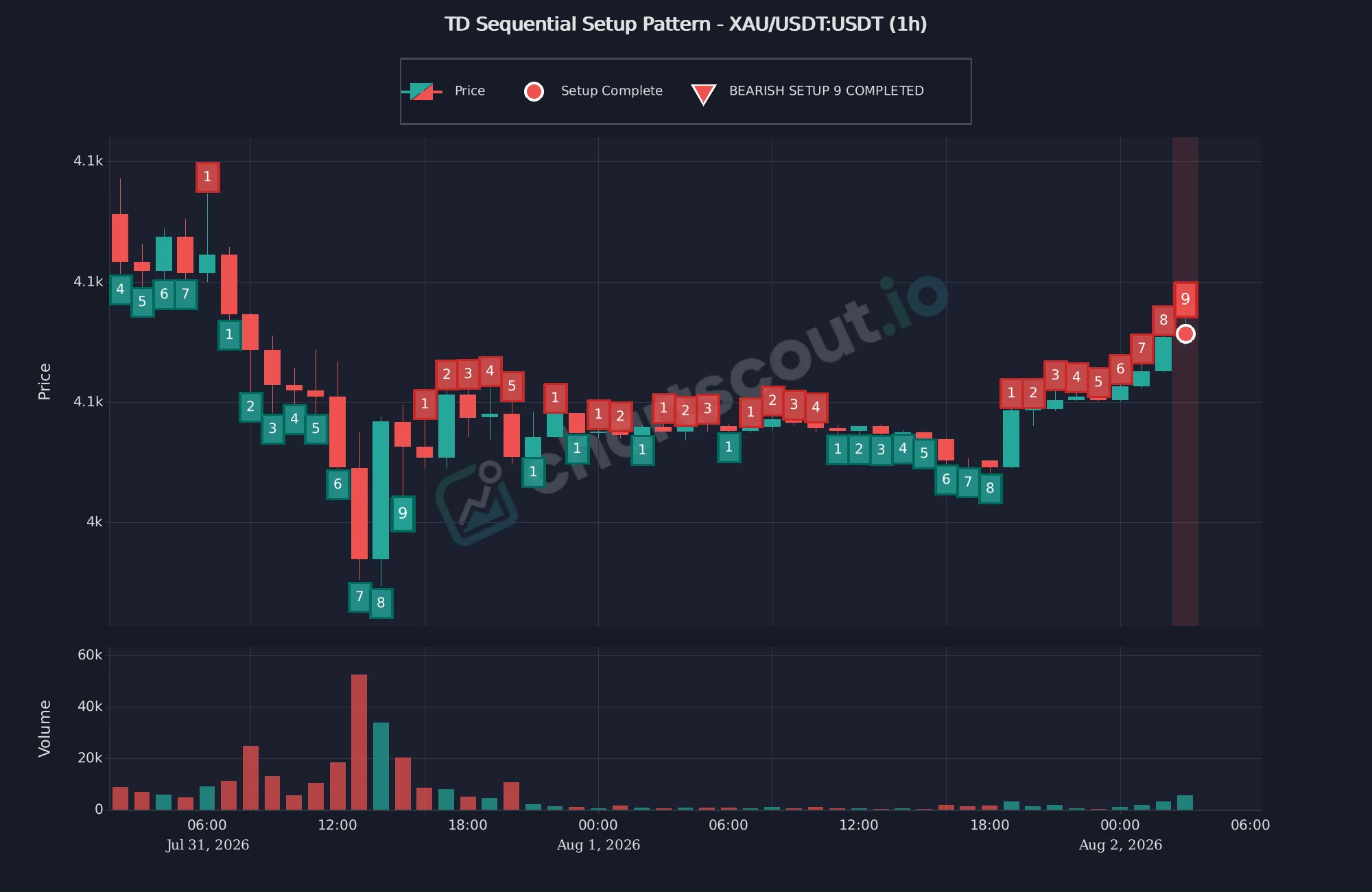

19. TD setup (DeMark Sequential)
ExhaustionA TD Setup is a 9-bar sequence where each closing price is higher (sell setup) or lower (buy setup) than the close 4 bars earlier. When the count reaches 9, the trend is considered exhausted and a reversal becomes likely. Developed by Thomas DeMark and popularized in his book The New Science of Technical Analysis, TD Setup is one of the most respected exhaustion signals in all of technical analysis.
No Bulkowski statistical ranking - TD Setup is a DeMark proprietary indicator, not a classical chart pattern. Performance data is published in DeMark's books and Jason Perl's DeMark Indicators.
How it forms: A buy setup begins when a candle closes lower than the close 4 bars earlier. Each subsequent candle that continues closing lower than 4 bars back increments the count. When bar 9 prints, the setup is complete. The reverse logic applies to sell setups: 9 consecutive closes higher than 4 bars back.
Key rules: TD Setup is an exhaustion signal, not an automatic reversal trigger. Use bar 9 as a warning that the current trend may be running out of buyers or sellers. The signal is strongest when bar 8 or 9 forms a reversal candle (doji, hammer, engulfing). A perfected setup - where bars 8 or 9 have a price extreme exceeding bars 6 and 7 - carries the highest probability of a turn.

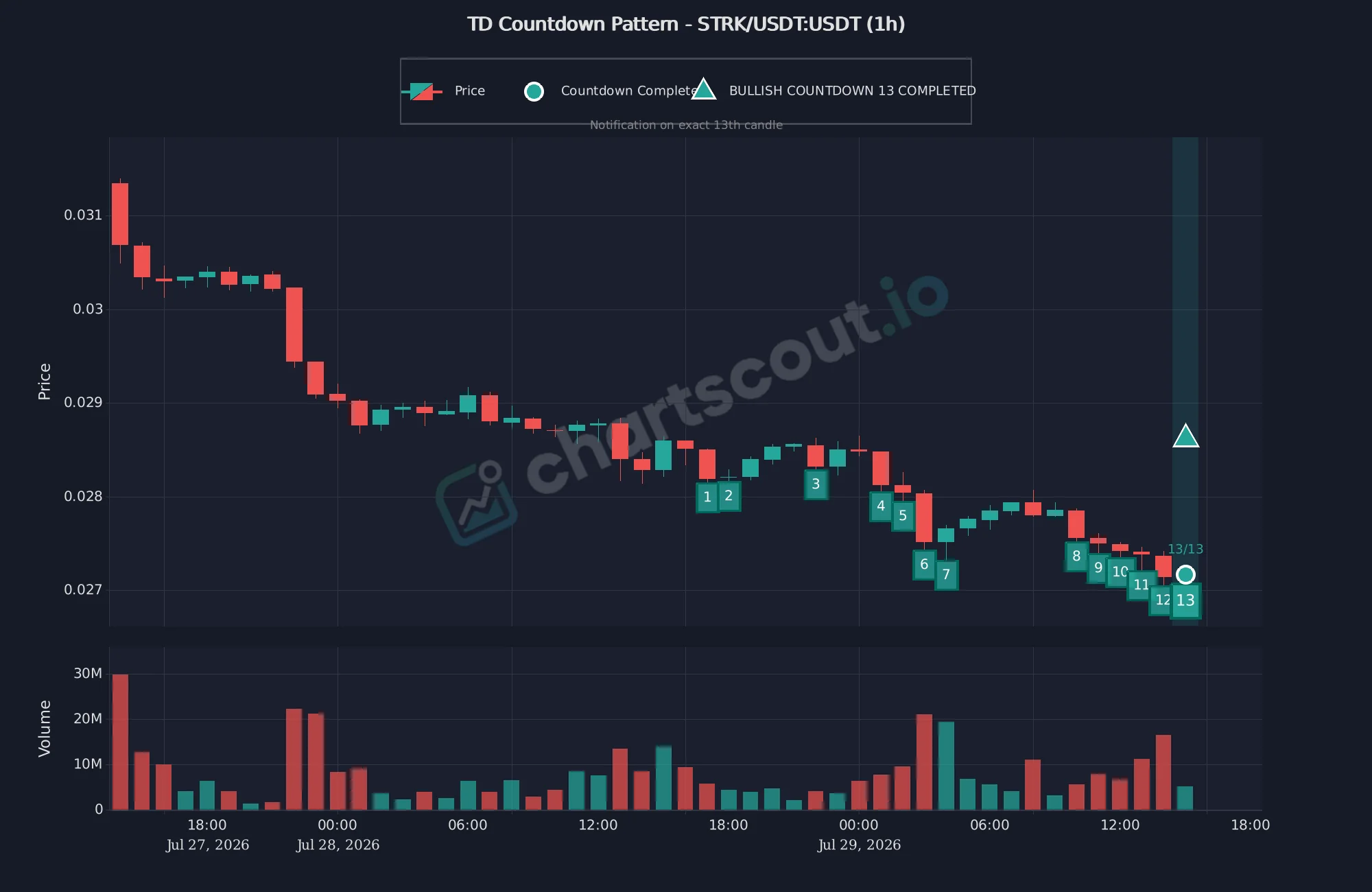

20. TD countdown (DeMark Sequential)
ExhaustionTD Countdown is the second phase of DeMark Sequential, beginning only after a TD Setup has completed. It is a 13-bar qualifying sequence where each bar must close beyond a reference from 2 bars earlier. Countdown is rarer and slower to complete than Setup, but when bar 13 prints, the trend exhaustion signal is considerably stronger. Countdown 13 is the signal that major hedge funds and institutional traders watch most closely for high-conviction reversal entries.
No Bulkowski statistical ranking - proprietary DeMark methodology. Primary source: Thomas DeMark's The New Science of Technical Analysis and Jason Perl's DeMark Indicators.
How it forms: After a Setup completes, Countdown begins. A buy countdown ticks forward each time a bar closes at or below the low from 2 bars earlier. 13 qualifying closes complete the countdown. Sell countdown uses the mirror rule: closes at or above the high from 2 bars earlier. Countdown bars do not need to be consecutive - the count persists across interruptions unless the setup is cancelled.
Key rules: Countdown 13 is a much higher-conviction reversal signal than Setup 9. Use it as a primary entry trigger, not just confirmation. Expect the reversal to begin within a few bars of Countdown 13 printing. Combine with a candlestick reversal pattern or a support/resistance level for precise entry timing. Countdown signals are rare enough that when they fire, they demand attention.
Pattern comparison table
This quick-reference table summarizes every pattern's direction, break-even rate, average move, and Bulkowski rank. Sorted by break-even rate. Use it to prioritize the highest-probability setups.
| Pattern | Signal | Break-even | Avg Move | Rank | Category |
|---|---|---|---|---|---|
| Cup and Handle | Bullish | 95% | 54% | 3/39 | Continuation |
| Triple Bottom | Bullish | 87% | 46% | 12/39 | Reversal |
| Double Bottom | Bullish | 84% | 39% | 26/39 | Reversal |
| Ascending Triangle | Bullish | 83% | 43% | 16/39 | Continuation |
| Head & Shoulders | Bearish | 81% | 16% | 9/36 | Reversal |
| Descending Triangle | Bearish | 77% | 15% | 15/36 | Continuation |
| Triple Top | Bearish | 75% | 14% | 24/36 | Reversal |
| Double Top | Bearish | 75% | 15% | 19/36 | Reversal |
| Sym. Triangle | Neutral | 75% | 34% | 36/39 | Continuation |
| Falling Wedge | Bullish | 74% | 38% | 31/39 | Wedge |
| Bull Flag | Bullish | 56% | 9% | N/A | Continuation |
| Bear Flag | Bearish | 55% | 8% | N/A | Continuation |
| Rising Wedge | Bearish | 49% | 9% | 36/36 | Wedge |
| Bullish Pennant | Bullish | 46% | 7% | N/A | Continuation |
| Bearish Pennant | Bearish | 46% | 6% | N/A | Continuation |
| Crossover (golden / death) | Bidirectional | N/A | Varies | N/A | Indicator |
| TD Setup | Bidirectional | N/A | N/A | N/A | Indicator |
| TD Countdown | Bidirectional | N/A | N/A | N/A | Indicator |
| Ascending Channel | Bullish | N/A | Width | N/A | Channel |
| Descending Channel | Bearish | N/A | Width | N/A | Channel |
N/A = Bulkowski does not report comparable statistics. Flags and pennants are measured on short-term price swings rather than breakout-to-ultimate-high. Crossovers, channels, and the DeMark Sequential patterns (TD Setup, TD Countdown) are indicator-based signals rather than geometric chart patterns and are not ranked in Bulkowski's catalog. Source: thepatternsite.com, updated 2020.
Key insight
Notice the asymmetry: bullish patterns produce dramatically larger average moves than their bearish counterparts. Cup and handle averages 54% gains, triple bottom 46%, ascending triangle 43%, double bottom 39% - while the best-performing bearish patterns (head and shoulders, descending triangle) average only 15-16% declines. Selloffs are sharp but brief; rallies build gradually and go further. Position sizing should reflect this - a bullish breakout deserves more capital commitment than a bearish one.
Timeframe reliability matrix
Four timeframes matter for crypto chart patterns: 5-minute, 15-minute, 1-hour, and 4-hour. Everything else is either too noisy (1-minute) or too slow (daily and weekly) for crypto's 24/7 pace. 5m is the scalping layer where fast moves on high-momentum pairs play out. 15m is the sweet spot for most intraday patterns. 1h gives you swing-trading structure without the latency of 4h. 4h is for trend context and cleaner major reversals.
The matrix below shows which of the four each pattern performs best on. ChartScout detects all 20 patterns across all four timeframes simultaneously across 1,000+ pairs, so you do not have to pick a single timeframe - you can run every pattern on every timeframe and only act when an alert fires.
| Pattern category | Best | Also works | Why |
|---|---|---|---|
| Head & shoulders, triple tops/bottoms | 15m, 1h, 4h | 5m | Three-peak formations need enough candles to develop; 15m, 1h, and 4h give the cleanest shoulders and most reliable necklines. |
| Double tops/bottoms | 5m, 15m, 1h, 4h | - | Work across all four - 5m for scalping pumps, 15m/1h for intraday swings, 4h for higher-conviction reversals. |
| Bull/bear flags, pennants | 5m, 15m, 1h | 4h | Half-staff continuations thrive on the fastest timeframes where the flagpole momentum is still live in the order book. |
| Ascending/descending triangles | 15m, 1h, 4h | 5m | Need multiple touches on each trendline; 15m, 1h, and 4h give enough candles for clean trendlines without the noise of 5m. |
| Symmetrical triangle | 15m, 1h, 4h | - | Directional ambiguity is worst on 5m; 15m, 1h, and 4h produce honest breakouts. |
| Cup and handle | 15m, 1h, 4h | 5m | The rounded cup needs time. 15m cups form over ~1 day, 1h cups over ~3 days, 4h cups over ~1 week. 5m cups work on high-momentum altcoin pumps. |
| Wedges (rising, falling) | 15m, 1h, 4h | 5m | Wedges need at least three touches per trendline to validate; 15m, 1h, and 4h produce enough structure, 5m wedges work for scalpers on leveraged perps. |
| Ascending/descending channels | 5m, 15m, 1h, 4h | - | Channels are scale-invariant - as long as price bounces between parallel lines cleanly, the timeframe does not matter much. |
| Crossover (golden / death) | 1h, 4h | 15m | The 50/200 SMA relationship needs substantial lookback. 1h and 4h crossovers in crypto are major regime-change events; 15m is fast enough for swing trades. |
| TD Setup, TD Countdown | 5m, 15m, 1h, 4h | - | DeMark Sequential is timeframe-agnostic by design - the 9-bar Setup and 13-bar Countdown work on any timeframe as long as the bar count completes. 5m TD Setups fire multiple times a day on momentum pairs; 4h Setups are rarer and higher-conviction. |
5m, 15m, 1h, 4h - pick your trading style, not your timeframe
The four timeframes that matter for crypto map to four trading styles. 5-minute is for active scalping on high-momentum pairs - fast entries, tight stops, alerts flying in every few minutes. 15-minute is the intraday sweet spot - multiple high-quality setups per day across the top 200 pairs without the noise of 5m. 1-hour is for swing traders who want structure without 4h latency - cleaner formations, less screen time. 4-hour is for trend-context trades and higher-conviction reversals - fewer alerts, but each one carries more weight. ChartScout scans all four simultaneously across 1,000+ pairs, so you do not have to pick one - you pick the trading style and let the scanner surface matching setups at the timeframe that fits.
Universal volume rules
Volume is the single most important confirmation tool across all 20 patterns. These five rules apply to every pattern in this cheat sheet, and they come from the same Dow Theory principle that has underwritten technical analysis for over a century.
“‘Volume Goes with the Trend’ - Those words, which you may often hear spoken with ritual solemnity but little understanding, are the colloquial expression for the general truth that trading activity tends to expand as prices move in the direction of the prevailing Primary Trend.”
- Edwards & Magee, Technical Analysis of Stock Trends
1. Volume should decline during formation
For converging patterns (triangles, wedges, pennants), volume contracts as the range narrows. This represents indecision - traders are waiting for a resolution. Expanding volume during pattern formation is a warning sign: it means the boundaries are not actually containing the fight between buyers and sellers, and the pattern is likely to fail when it does break.
2. Breakout volume must expand
The breakout candle should show volume meaningfully above the recent average - a common rule of thumb is at least 1.5x the 20-period mean, though the exact threshold matters less than the direction. A clean breakout with expanding volume confirms that real money is behind the move, not just stop-hunting or thin-liquidity wicks. Low-volume breakouts have a dramatically higher failure rate and frequently produce the busted-pattern reversals covered later in this guide.
3. Upside breakouts need more volume than downside
Prices can fall under their own weight. They cannot rise without active buying. Bearish breakdowns often succeed on moderate volume because sellers only need the absence of buyers to push price lower, while bullish breakouts need a crowd willing to pay up. When evaluating a bullish pattern, be strict about the volume confirmation. When evaluating a bearish pattern, give it a bit more benefit of the doubt on volume alone.
4. Pullback volume should be light
After a breakout, price frequently pulls back to retest the broken level. A healthy pullback happens on declining volume - it is profit-taking and trader repositioning, not a genuine reversal. Heavy volume on the pullback is a warning that the original breakout may have been absorbed by larger sellers, and the pattern is at risk of failing.
5. Volume divergence signals failure
If price makes a new high but volume makes a lower high, the pattern is losing momentum. This applies to the second peak of a double top, the head of a head and shoulders, or any rally toward resistance. Volume divergence is the earliest warning that a pattern may not resolve as expected, and it often shows up several candles before the structural break becomes obvious on the price chart alone.
For a deeper look at volume analysis across all pattern types, read our dedicated guide on chart patterns and volume analysis.
When patterns fail: busted patterns
Most cheat sheets stop at “here's how the pattern works.” But roughly 30-40% of chart patterns fail to reach their measured-move target, and a meaningful slice of those failures become stronger signals in the opposite direction. Bulkowski calls these busted patterns, and they are one of the most profitable setups in technical analysis precisely because nobody is expecting them.
A busted pattern works like this: a symmetrical triangle breaks upward, price travels less than 5% beyond the breakout, then reverses and breaks down out of the opposite side. Everyone who bought the original breakout is now trapped. Their stops trigger on the way down, fueling the reversal. The second breakout almost always produces a larger move than the first would have.
“One of the best patterns in technical analysis is a false breakout. If prices dip below support and then rally back into the support zone, they show that bears have lost their chance.”
- Alexander Elder, The New Trading for a Living
The Bulkowski rule for trading busted patterns: wait for price to move less than 5% past the original breakout point. If it reverses and breaks the opposite boundary, that's your entry. Stop-loss goes beyond the failed breakout extreme. Target is typically 1.5x the original pattern's measured move, because the squeeze of trapped traders amplifies the reversal.
Only for experienced traders: Busted patterns require you to be right twice in a row - first recognizing the original pattern, then recognizing that it has failed. Beginners should stick to trading confirmed breakouts in the pattern's expected direction. Graduate to busted patterns only after you can reliably trade the primary setups.
Automated pattern scanning
Memorizing 20 patterns is one thing. Spotting them across hundreds of crypto pairs, across multiple timeframes, in real time? That's where manual chart-watching breaks down. Most traders focus on 5–10 pairs and miss the bulk of setups forming elsewhere.
ChartScout scans for all 20 patterns
ChartScout's detection engine uses algorithmic peak-finding, trendline fitting, and mathematical validation to identify all 20 patterns in this cheat sheet across 1,000+ crypto pairs in real time. Each detector runs on its own dedicated service, processing candle data the moment new data arrives.
When a pattern is detected - whether it's a double top forming on SOL/USDT or a golden cross approaching on BTC/USDT - you get an instant alert with the pattern type, timeframe, and key levels marked.
Start a free 7-day trialNo pattern scanner is perfect. Automated detection eliminates the subjectivity of manual pattern recognition, but it does not guarantee profitable trades. Always apply the volume confirmation rules and stop-loss placement from this cheat sheet before entering any trade flagged by a scanner.
Frequently asked questions
What are the most reliable chart patterns in crypto?
The most reliable patterns by Bulkowski's break-even rate (from thepatternsite.com) are cup and handle (95%), triple bottom (87%), double bottom (84%), ascending triangle (83%), and head and shoulders (81%). In crypto, all five work across the 5m, 15m, 1h, and 4h timeframes where ChartScout's scanner catches the most setups.
How many chart patterns should a crypto trader know?
Most professional traders focus on 5-8 core patterns rather than all 20. Start with double tops, double bottoms, head and shoulders, cup and handle, and ascending triangles. These five account for the majority of high-probability setups. Add wedges and channels once you are consistently profitable with the basics.
Do chart patterns actually work in crypto?
Yes, but with important caveats. Chart patterns reflect crowd psychology, which applies to all liquid markets. However, crypto's higher volatility means patterns complete faster and produce larger moves. The key is volume confirmation and avoiding low-liquidity altcoins where patterns are less reliable.
What is the difference between reversal and continuation patterns?
Reversal patterns (head and shoulders, double tops/bottoms, triple tops/bottoms) signal that the current trend is ending and price will move in the opposite direction. Continuation patterns (flags, pennants, triangles, cup and handle) signal a temporary pause before the existing trend resumes.
Which timeframe is best for chart patterns in crypto?
The 5-minute, 15-minute, 1-hour, and 4-hour timeframes are the four that matter for crypto. 5m catches scalping setups on high-momentum pairs, 15m is the sweet spot for most intraday patterns, 1h offers swing-trade structure without 4h latency, and 4h provides trend context plus cleaner major-reversal signals. The 1-minute timeframe is too noisy for reliable pattern detection, and anything above 4h tends to miss crypto's fast cycles.
How do you confirm a chart pattern breakout?
Three confirmation filters: (1) price must close beyond the pattern boundary, not just wick through it; (2) breakout volume should expand meaningfully above the recent average; (3) wait for a retest of the broken level as new support or resistance. Using all three filters dramatically reduces false breakout trades.
Can chart patterns be detected automatically?
Yes. ChartScout uses algorithmic detection with mathematical peak-finding and trendline validation to identify all 20 patterns across 1,000+ crypto pairs in real time. Automated scanning eliminates human bias and catches patterns across timeframes that manual traders would miss.
What is the most profitable chart pattern?
By average rise after breakout, the cup and handle leads with a 54% average gain, followed by the triple bottom (46%), ascending triangle (43%), and double bottom (39%). Bulkowski ranks the cup and handle #3 overall out of 39 bullish patterns with a 95% break-even rate, making it the single best-performing setup for patient traders.
What are the best chart patterns for beginners?
Start with double tops, double bottoms, and cup and handle. All three are visually obvious, have clear entry rules (neckline break for doubles, handle breakout for cup and handle), and rank in Bulkowski's top-tier for reliability. Avoid wedges, symmetrical triangles, and busted patterns until you have at least 6 months of experience trading the basics profitably.
Can chart patterns predict crypto prices?
No pattern predicts prices with certainty. What chart patterns do is identify zones where the probability of a specific move is elevated enough to justify a trade with a defined stop-loss. A head and shoulders does not guarantee a drop - it says the probability of a drop of at least the measured-move distance is around 81%, which is enough edge to trade with proper risk management.
What is the measured move method for price targets?
The measured move method projects the pattern's height from the breakout point. For a double top with peaks at $100 and a neckline at $90, the target is $80 ($90 minus the $10 height). For triangles, measure the widest point and project from the breakout.
Bulkowski's published stats at thepatternsite.com show that the full-projection measured move is a coin flip at best: measured moves down hit their target 43% of the time, and measured moves up hit 60% of the time. The practical implication is to take partial profits well before the full target and trail the remainder. The full measured-move target is a ceiling, not a plan.
Sources & references
Data source note: All break-even rates, average moves, throwback/pullback rates, target-hit percentages, and performance ranks for the 17 classical chart patterns are Bulkowski's most recent statistics from thepatternsite.com (data updated 8/26/2020, based on 40,000+ perfect trades across 39 bullish and 36 bearish patterns). The three indicator signals (crossover, TD Setup, TD Countdown) are not in Bulkowski's catalog; their methodology and trading rules come from Thomas DeMark's and Jason Perl's books listed below. All stock-market stats; crypto's 24/7 trading and higher volatility can shift these numbers meaningfully.
- Bulkowski, Thomas N. ThePatternSite.com - Chart Pattern Statistics. Updated 8/26/2020. thepatternsite.com.
Primary statistical source for every pattern in this cheat sheet. Pages referenced include: head-and-shoulders top (hst.html), head-and-shoulders bottom (hsb.html), triple tops (tt.html), triple bottoms (tb.html), double tops and bottoms (aadt, aadb, eedt, eedb pages), flags (flags.html), pennants (pennants.html), ascending triangles (at.html), descending triangles (dt.html), symmetrical triangles (st.html), rising wedge (risewedge.html), falling wedge (fallwedge.html), cup with handle (cup.html), measured move down (mmd.html), and measured move up (mmu.html). - Bulkowski, Thomas N. Encyclopedia of Chart Patterns, 3rd Edition. John Wiley & Sons, 2021. ISBN: 978-1119739685.
Canonical print reference for chart pattern performance. Expanded sample sizes and updated variant breakdowns (Adam & Adam, Adam & Eve, Eve & Adam, Eve & Eve double tops and bottoms). - Bulkowski, Thomas N. Getting Started in Chart Patterns, 2nd Edition. John Wiley & Sons. ISBN: 978-0470466209.
Introductory companion with practical identification rules, busted pattern trading tactics (5% threshold rule), and the double top confirmation discussion. - Edwards, Robert D., Magee, John & Bassetti, W.H.C. Technical Analysis of Stock Trends, 11th Edition. CRC Press. ISBN: 978-1439898185.
Chapter 3 (“The Dow Theory”), p. 21. Source of the “Volume Goes with the Trend” quote that anchors the Universal Volume Rules section. - Elder, Alexander. The New Trading for a Living. John Wiley & Sons, 2014. ISBN: 978-1118443927.
Source of the “applied social psychology” quote (p. 20) and the “one of the best patterns in technical analysis is a false breakout” quote (p. 75) used in the crypto-context and busted-patterns sections. - Pring, Martin J. Martin Pring on Price Patterns. McGraw-Hill, 2004. ISBN: 978-0071440387.
Source for head-and-shoulders psychology (Chapter 7) and the return-line channel quote (p. 49). - Miner, Robert C. High Probability Trading Strategies: Entry to Exit Tactics for the Forex, Futures, and Stock Markets. John Wiley & Sons, 2008. ISBN: 978-0470181669.
p. 9. Source of the “moving average crossovers are notorious for false trend reversal signals” quote in the Death Cross section. - O'Neil, William J. How to Make Money in Stocks. McGraw-Hill.
Original source of the cup with handle pattern definition, structural rules (cup depth 12-33%, handle retracement, pivot point buy signal), and the 30% prior uptrend requirement. - DeMark, Thomas R. The New Science of Technical Analysis. John Wiley & Sons, 1994. ISBN: 978-0471035480.
Original primary source for the DeMark Sequential indicator, including both TD Setup (9-bar) and TD Countdown (13-bar) methodologies. This is the foundational reference for all DeMark exhaustion indicators referenced in this guide. - Perl, Jason. DeMark Indicators. Bloomberg Press, 2008. ISBN: 978-1576603147.
The clearest practitioner's guide to DeMark Sequential. Source for the perfected setup definition, Countdown qualifying-bar rules, setup cancellation conditions, and practical trading tactics for TD Setup 9 and TD Countdown 13 signals.
Stjepan Ivanović
Founder of ChartScout · Crypto Trader Since 2013
Trading crypto since 2013 with his first Bitcoin bought at ~$200. Four complete bull/bear market cycles, traded on early exchanges like Mt.Gox and BTC-e, on-chain trading on IDEX and EtherDelta, and ~70 crypto project investments. Built ChartScout after 18+ months of development to automate what no trader can do manually - watch hundreds of charts 24/7.
